Cable grommet, Ø5.3 mm, natural, 2000pcs.
Art.-No. 631-08219 | HV4821-PVC-FR-NA Details

  • Protects effectively against spraying water
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Request your individual offer now

Application Elbow grommets are specially constructed to insulate and protect flat pin bushings. They are used in all areas of automotive electronics and connection technology.
Colour Natural (NA)
Material Polyvinylchloride, flame retardant (PVC-FR)
Pack Content 2000pcs.
Package Content packed in pcs.

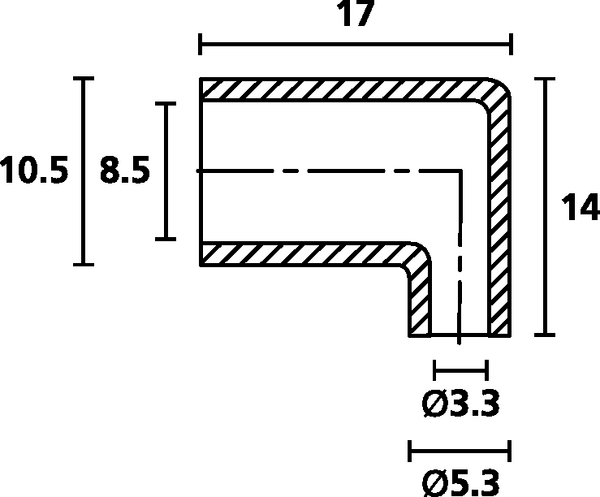

PART DESCRIPTION HV4821-PVC-FR-NA
Product Family Elbow grommets
Product Group For flat pin bushings
Variant Open
Diameter (D) 8.5mm
for Hole ∅ (FH) 5.3 mm
Height (H) 14.0mm
Length (L) 17.0mm
Outside Ø (OD) 10.5mm
Outside ∅ (OD2) 5.3mm
Shore Hardness A 55±5
∅ (D2) 3.3mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0, FMVSS 302
Halogen-free No
Hazardous Goods No
Nato number 5975-12-188-7912
Operating Temperature -30 °C to +60 °C
Specifications
GTIN-13 / EAN 4031026185781
Packaging 1 - Height (m) 0.065m
Packaging 1 - Length (m) 0.18m
Packaging 1 - Qty 2000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00386
Packaging 1 - Weight (kg) 1.15kg
Packaging 1 - Width (m) 0.33m
