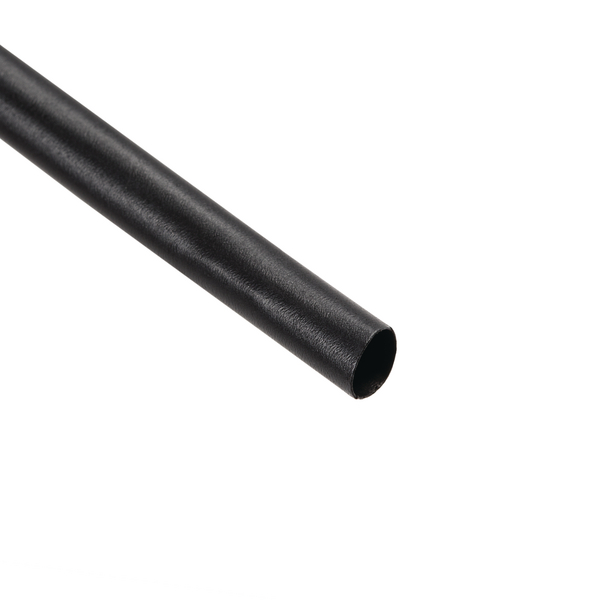

Heat shrinkable tubing up to 4:1 - 1 m lengths
Art.-No. 321-50016
| TREDUX HA47-48ST-85/25-PO-X-BK
|
Copied
- Thick wall polyolefin adhesive-lined tubing
- 1 m shrink tubing lengths delivered in handy display carton
- All tubes can be sold in single 1 meter lengths or entire box
Request quote
More products in this product group:
| Application | The toughness and weatherability make TREDUX thick wall tubing suitable for exposed applications and underground cable joints. |
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | TREDUX HA47-48ST-85/25-PO-X-BK |
| Pack Content | 1pc. |
| Package Content packed in | pack |
| Printable | No |
| Product Family | TREDUX HA47 - thick wall adhesive lined |
| Product Group | Heat shrinkable tubing up to 4:1 - 1 m lengths |
| Shrink Ratio | up to 3.5:1 |
| Type | TREDUX HA47-48ST-85/25 |
| UV-Stabilised | No |
| Variant | Thick-Wall |
| Voltage range | Low Voltage |
| With inner glue (Yes/No) | Yes |
| Adhesive | Hot melt adhesive |
| CE Certification | No |
| CSA Certified | No |
| Dielectric Strength | 20kV/mm |
| Elongation at break (min.) | 400% |
| Halogen-free | Yes |
| Min. Shrink Temperature - °C | +120 °C |
| Operating Temperature | -55 °C to +110 °C, (outer wall only) |
| ROHS compliant | Yes |
| Softening Point Adhesive | +85 °C |
| Specifications |
|
| Tensile Strength | 14MPa |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| Volume Resistance | 10¹⁴ Ω cm |
