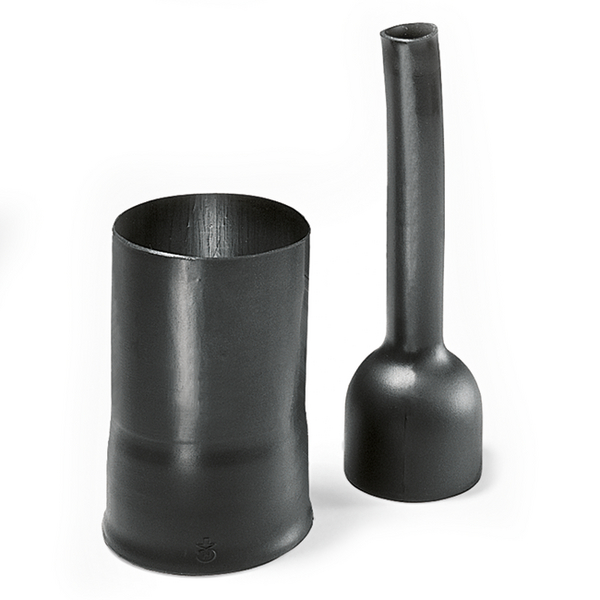

Helashrink 130 Series, with rib, low profile
Art.-No. 401-33023 | 133-4-J-PO-X-BK |  Details

135-1 supplied / fully recovered.

    • Low profile and lightweight
    • Typically used on airborne harnesses
    • Rib locates on circular backshell
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Application Tool H6100, CHG900
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 133-4-J-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 130 Series, with rib, low profile
    Product Group Long Outlet Shape, VG style
    Type 133-4-J
    Variant For plug
    Flexibility Flexible
    HW ± 20 % 2mm
    JW ± 20 % 1.1mm
    P ± 10 % 177.8mm
    R nom. 14mm
    R ± 10 % 14mm
    S nom. 141.8mm
    T ± 10 % 1.7mm
    T ± 20 % 1.7mm
    V max. 3.3mm
    V ± 10 % 3mm
    ∅H max. b 26.9mm
    ∅H min. a 37.3mm
    ∅J max. b 10.4mm
    ∅J min. a 37.3mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-00-355-7964
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 19MPa
    UV-Stabilised No
    GTIN-13 / EAN 5022660426490
    Packaging 1 - Height (m) 0.040m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00064m³
    Packaging 1 - Weight (kg) 0.012001kg
    Packaging 1 - Width (m) 0.100m
    UNSPSC Key 39121721
