Long Outlet Shape, VG style
Art.-No. 401-35016 | 135-1-B7-PO-X-BK |

Copied

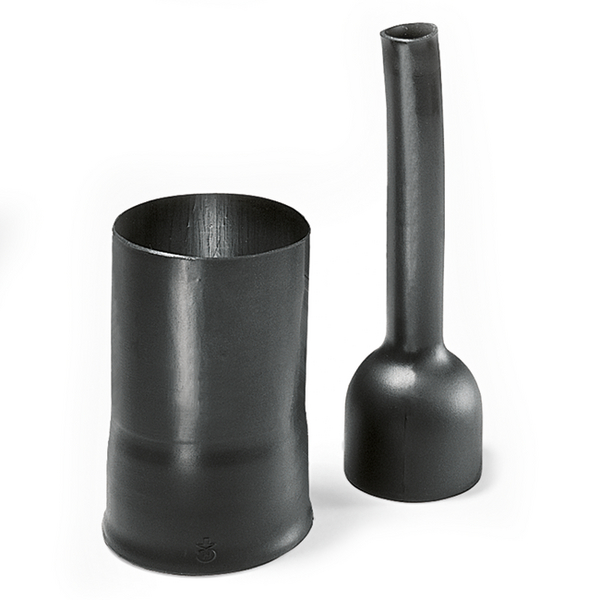

135-1 supplied / fully recovered.
a: Expanded form (supplied)
b: Fully recovered form (after heating)

    • Low profile and lightweight
    • Typically used on airborne harnesses
    • Rib locates on circular backshell
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 135-1-B7-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 130 Series, with rib, low profile
    Product Group Long Outlet Shape, VG style
    Type 135-1-B7
    UV-Stabilised No
    Variant For plug
    ⌀H max. b 41mm
    ⌀H min. a 50mm
    ⌀J max. b 14.5mm
    ⌀J min. a 50mm
    Flexibility semi rigid
    HW ± 20 % 2.3mm
    JW ± 30 % 1.4mm
    P ± 10 % 118mm
    R nom. 15mm
    S nom. 73mm
    T ± 20 % 1.7mm
    V max. 3.3mm
    V ± 10 % 3mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    GTIN-13 / EAN 5022660427138
    UNSPSC Key 39121721
