15/05/2024

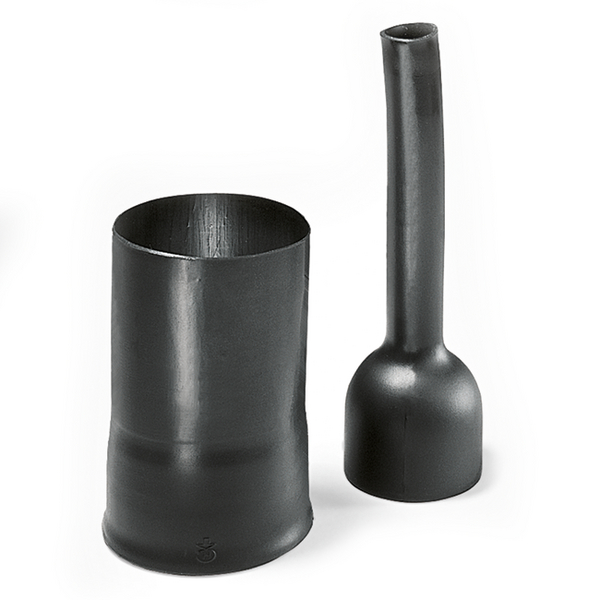

Helashrink 130 Series, with rib, low profile
Art.-No. 401-36026 | 136-52-L-FPMX-BK |  Details

135-1 supplied / fully recovered.

    • Low profile and lightweight
    • Typically used on airborne harnesses
    • Rib locates on circular backshell
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Application Tool H6100, CHG900
    Colour Black (BK)
    Material Fluoroelastomer, cross-linked (FPMX)
    Pack Content 1pc.
    Package Content packed in bag
    PART DESCRIPTION 136-52-L-FPMX-BK
    Product Family Helashrink 130 Series, with rib, low profile
    Product Group Long Outlet Shape, VG style
    Variant For plug
    HW ± 20 % 2.5mm
    JW ± 20 % 1.4mm
    P ± 10 % 203.2mm
    R nom. 16mm
    S nom. 153.2mm
    T ± 20 % 2.0mm
    V max. 3.3mm
    ∅H max. b 47mm
    ∅H min. a 60mm
    ∅J max. b 17.5mm
    ∅J min. a 37mm
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-01-137-5175
    Operating Temperature -55 °C to +200 °C
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 5022660671463
    Packaging 1 - Height (m) 0.070m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00168m³
    Packaging 1 - Weight (kg) 0.050001kg
    Packaging 1 - Width (m) 0.120m
    UNSPSC Key 39121721
