Bottle Shapes, VG style
Art.-No. 401-53001 | 153-41-B7-PO-X-BK |

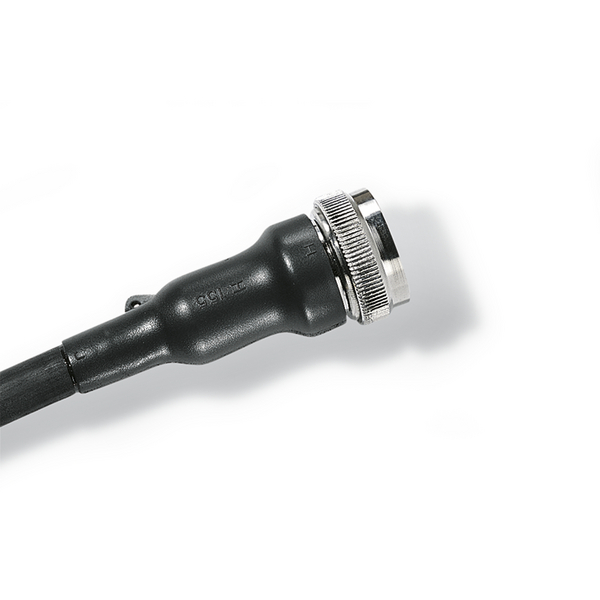

150 Series boot recovered onto a connectors.

150 Series supplied.

a: Expanded form (supplied)

b: Fully recovered form (after heating)

Use in conjunction with circular grooved adaptors
Strengthened strain relief by usage of an additional inner lip
Excellent protection against environment impacts
Eliminates moisture ingress to harness

Stock item

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Bottle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	153-41-B7-PO-X-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 150 Series, with rib
Product Group	Bottle Shapes, VG style
Type	153-41-B7
UV-Stabilised	No
Variant	For plug

Product Dimensions


⌀H max. b	14mm
⌀H min. a	25mm
⌀J max. b	3.5mm
⌀J min. a	9mm
Flexibility	semi rigid
For Object Outside Diameter	16.2-22.8 mm
HW ± 20 %	1.8mm
JO ± 10 %	16mm
JW ± 20 %	0.5mm
JW ± 30 %	0.5mm
P ± 10 %	40mm
R ± 10 %	13mm
S nom.	16mm
T ± 20 %	1mm
V max.	3.3mm
V ± 10 %	3mm
V ± 20%	3mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant (Article 4 - 2)	YES
Flammability	ASTM D635
Min. Shrink Temperature - °C	+135 °C
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications

Logistics and Packaging


GTIN-13 / EAN	5022660679919
Packaging 1 - Height (m)	0.030m
Packaging 1 - Length (m)	0.120m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00036m³
Packaging 1 - Weight (kg)	0.003001kg
Packaging 1 - Width (m)	0.100m
Packaging 2 - Qty	0
Packaging 3 - Qty	0
Packaging 4 - Qty	0

More Information

UNSPSC Key

39121721

Accessories

CHG900 391-90010
Cordless Heat Gun - Gas powered
