Bottle Shapes, VG style
Art.-No. 401-56037 | 156-41-J-PO-X-BK |

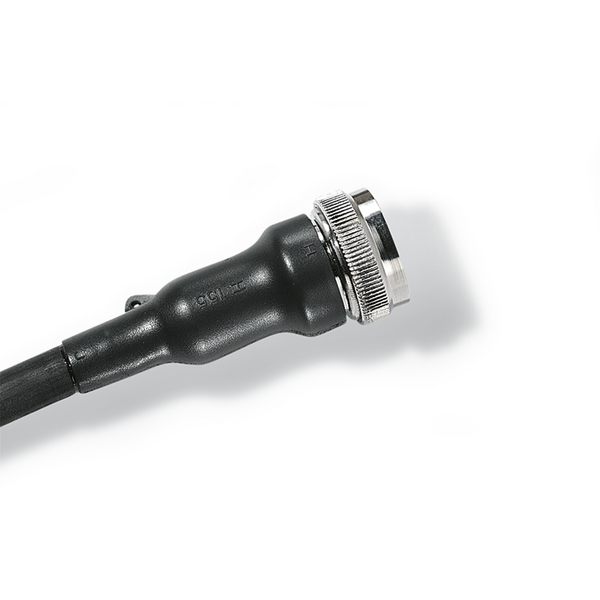

150 Series boot recovered onto a connectors.

150 Series supplied.

a: Expanded form (supplied)

b: Fully recovered form (after heating)

Use in conjunction with circular grooved adaptors
Strengthened strain relief by usage of an additional inner lip
Excellent protection against environment impacts
Eliminates moisture ingress to harness

Stock item

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Bottle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	156-41-J-PO-X-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 150 Series, with rib
Product Group	Bottle Shapes, VG style
Type	156-41-J
UV-Stabilised	No
Variant	For plug

Product Dimensions


⌀H max. b	22.5mm
⌀H min. a	36mm
⌀J max. b	8.5mm
⌀J min. a	36mm
For Object Outside Diameter	25.2-33.3 mm
HW ± 20 %	2.0mm
JO ± 10 %	20.0mm
JW ± 20 %	1.0mm
JW ± 30 %	1.0mm
P ± 10 %	60mm
R nom.	22mm
R ± 10 %	22mm
S nom.	20mm
T ± 20 %	1.0mm
V max.	3.3mm
V ± 10 %	3.0mm

Downloads

Specifications

Nato number	5970-99-756-9994
ROHS compliant	Yes
Shelf Life	5 years
Specifications

Logistics and Packaging

GTIN-13 / EAN	5022660433115
Packaging 1 - Height (m)	0.040m
Packaging 1 - Length (m)	0.120m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00048m³
Packaging 1 - Weight (kg)	0.007001kg
Packaging 1 - Width (m)	0.100m

More Information

UNSPSC Key

39121721
