Angle Shapes
Art.-No. 418-33000 | 1833-5-L-FPMX-BK |

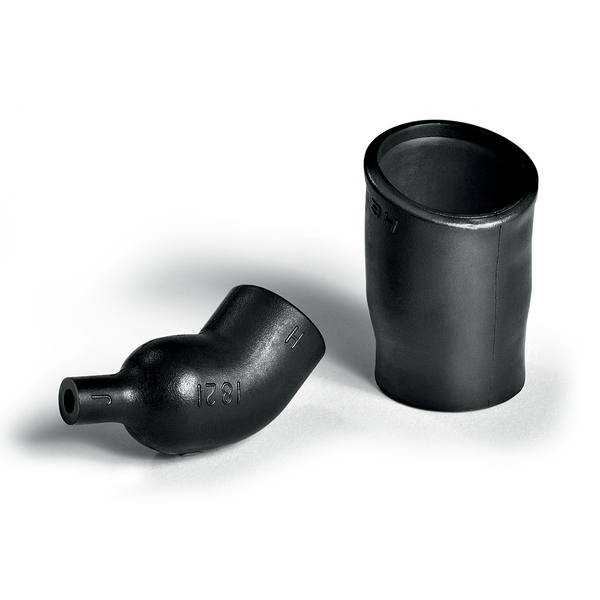

1821-42 supplied / fully recovered.

a: Expanded form (supplied)

b: Fully recovered form (after heating)

Provides strain relief and mechanical protection for harness systems
Use in conjunction with a circular grooved adaptor

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Fluoropolymer, cross-linked (FPMX)
PART DESCRIPTION	1833-5-L-FPMX-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
Product Group	Angle Shapes
Type	1833-5-L
UV-Stabilised	No

Product Dimensions


⌀H max. b	20.1mm
⌀H min. a	31mm
⌀J max. b	7mm
⌀J min. a	18mm
Angle	90
Flexibility	semi rigid
HW ± 20 %	1.8mm
JW ± 30 %	1.8mm
P ± 10 %	55mm
R ± 10 %	45.3mm
S nom.	35mm
T ± 10 %	2.0mm
V ± 10 %	3.5mm

Downloads

RoHS datasheet

Download

Specifications

Min. Shrink Temperature - °C	+135 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications

Logistics and Packaging

GTIN-13 / EAN

5022660690136

More Information

UNSPSC Key

39121721

Accessories

CHG900 391-90010
Cordless Heat Gun - Gas powered
