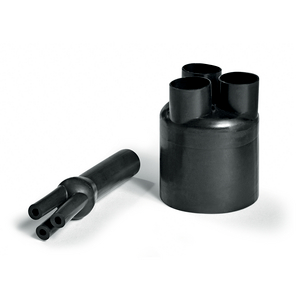

Helashrink 300 Series, in line, low voltage
Art.-No. 403-54004 | 354-1-B8W-PO-X-BK Details

  • Easy, time-saving insulation of cable branch point where it splits into single wires
  • Adhesive is applied to relieve mechanical tension in cable harnesses

Request your individual offer now

Application Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakouts to be used for both interior and exterior applications. They offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2, 3, 4, 5 and 6 core cables.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
Pack Content 1pc.
Package Content packed in bag
PART DESCRIPTION 354-1-B8W-PO-X-BK
Product Family Helashrink 300 Series, in line, low voltage
Product Group 3-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Variant For 3-core cables
Bundle Diameter max (metric) 45.0mm
Bundle ∅ min. 16.0mm
Flexibility semi rigid
HW ± 20 % 3mm
JW ± 20 % 2mm
P ± 10 % 100mm
R ± 10 % 25mm
∅H max. b 10mm
∅H min. a 45mm
∅J max. b 4mm
∅J min. a 16mm
Adhesive WM250
Dielectric Strength 15kV/mm
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous Goods No
Min. Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +100 °C
Specifications
Tensile Strength 15MPa
GTIN-13 / EAN 5022660666445
Packaging 1 - Qty 50
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 0.566501kg
Packaging 3 - Height (m) 0.305m
Packaging 3 - Length (m) 0.355m
Packaging 3 - Qty 100
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0433
Packaging 3 - Weight (kg) 1.8kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 85.8kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121721
