4-Way Outlet Shapes, VG style
Art.-No. 404-03014 | 403-1-G-PO-X-BK Details

  • 4-way outlet shape
  • Cable sealing, strain relief and mechanical protection

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 403-1-G-PO-X-BK
Pack Content 1pc.
Package Content packed in bag
Product Family Helashrink 400 Series
Product Group 4-Way Outlet Shapes, VG style
Shrink Ratio up to 3:1
Type 403-1-G
Variant For 4-core cables
Flexibility semi rigid

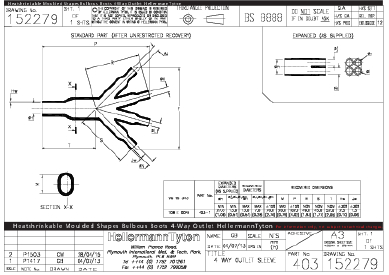

HW ± 30 % 1.5mm
JW ± 30 % 1.5mm
P ± 10 % 102mm
P ±10%=overall length 102mm
R nom. 49mm
R ± 10 % 52mm
S nom. 45mm
S ± 10 % 45mm
T ± 10 % 49mm
∅H max. b 13mm
∅H min. a 27mm
∅J max. b 7mm
∅J min. a 13mm
∅J/K/L/N max. b 7mm
∅J/K/L/N min. a 13mm
∅K max. b 7mm
∅K min. a 13mm
Dielectric Strength 15kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Min. Shrink Temperature - °C +135 °C
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
GTIN-13 / EAN 5022660461279
UNSPSC Key 39121721
