Heat Shrink Cable Joint Kit 6-25mm² with Connector Voltage Range 0.6/1 kV
Art.-No. 380-04015
| LVK-C-5x6-25-PO-X-BK
|
Copied
- Universally suitable to connect cables and conductors
- Immediately ready for use
- Using a high-quality thermoplastic inner adhesive
- Good corrosion protection properties with excellent abrasion resistance and weather resistance
- TCP (thermo chromatic paint) spots indicate the sleeve has been sufficiently heated
- Resistant to chemical agents and alkaline earths
- Excellent shrink behavior
- High UV resistance
- With mechanical connectors
- Halogen free
Show more
Show less
Request quote
More products in this product group:
Heat shrinkable straight-through joint with mechanical connectors
| Application | LVK-C is a heat shrinkable straight-through joint for universal connecting of unarmoured polymeric cables or conductors insulated with PVC, PE and XLPE. With mechanical connectors for aluminium or copper cables. Voltage level 0.6/1.0 (1.2) kV. |
| Colour | Black (BK) |

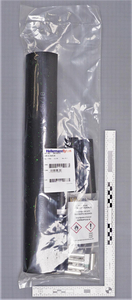

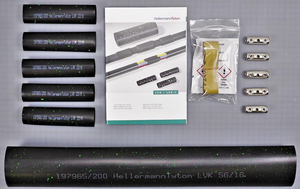

| Content | Outer sleeve, inner sleeves, mechanical connectors, cleaning cloth, emery cloth, installation instructions |
| Description | LVK-C heat shrinkable straight-through joint for universal connecting of unarmoured polymeric cables or conductors |
| Material | Polyolefin, cross-linked (PO-X) |
| No. of Inner sleeves | 5 |
| No. of Wires | 5 |
| PART DESCRIPTION | LVK-C-5x6-25-PO-X-BK |
| Pack Content | 1pcs. |
| Package Content packed in | kit |
| Product Family | LVK-C - adhesive lined |
| Product Group | Heat shrinkable straight-through joint with mechanical connectors |
| Shrink Ratio | up to 4:1 |
| Type | LVK-C-5x6-25 |
| Variant | Shrink Cast |
| Voltage range | Voltage level 0.6/1.0 (1.2) kV |
| With inner glue (Yes/No) | Yes |
| Conductor Size Range mm² | 16-50mm² |
| Height (H) | 60mm |
| Inner Tubing Length (L) | 170mm |
| Inner Tubing Recov. ⌀ d max. | 6mm |
| Inner Tubing Supplied ⌀ D min. | 22mm |
| Inner Tubing Wall (WT) | 2.5mm |
| Inner Tubing Wall (WT) | 0.1" |
| Longitudinal Change After Shrinkage | -10% max. |
| Outer Tubing Length (L) | 550mm |
| Outer Tubing Recov. ⌀ d max. | 16mm |
| Outer Tubing Supplied ⌀ D min. | 55mm |
| Outer Tubing Wall (WT) | 0.11" |
| Outer Tubing Wall (WT) | 2.7mm |
| Tube Shape | Specialty |
| Adhesive | Hot melt adhesive |
| Dielectric Strength | 20kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| ELV compliant (Article 4 - 2) | Yes |
| Elongation at break (min.) | 400% |
| Elongation at break test method | ASTM D2671 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Limited Fire Hazard | No |
| Min. Shrink Temperature - °C | +120 °C |
| Operating Temperature | -55 °C to +110 °C |
| ROHS compliant | Yes |
| Shelf Life | 5 years |
| Softening Point Adhesive | +105 °C |
| Specifications |
|
| Tensile Strength | 14MPa |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| Voltage Range | 0.6/1kV |
| Volume Resistance | 10¹⁴ Ω cm |
| Volume Resistance test method | IEC 93 |
|
|
|
| GTIN-13 / EAN | 4031026548357 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 0.68m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00612m³ |
| Packaging 1 - Weight (kg) | 0.37164kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 15 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 7.93kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 180 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 116.16kg |
| Packaging 4 - Width (m) | 0.8m |
