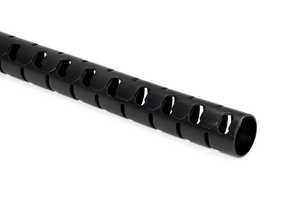

Helawrap cable cover HWPP16

HWPP in polypropylene, Article number: 161-64202


  • Ideal solution for bundling, protecting and fixing cables
  • Quick and effortless to apply
  • Good abrasion protection
  • Special profile enables branching off cable at any point
  • Can be removed and reapplied often

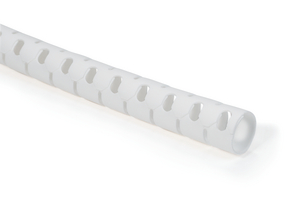

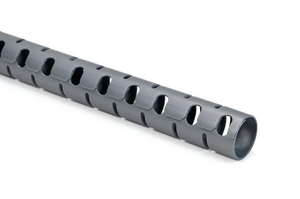

  • Available in several colours and sizes
  • Handy HAT applicator tool included

Certifications & Approvals


Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.

HWPP in polypropylene is suitable for following markets and industries

Application Tool HAT16

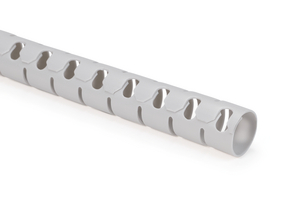

Colour Grey (GY)
Content 25m + tool
Pack Content 25m
Package Quantity per bag
Product Family HWPP in polypropylene
Product Group Helawrap cable cover
Variant Spiral Binding
Bundle ∅ max. 16mm
Bundle ∅ min. 13mm
Bundlediamter Range ETIM (Braided Sleeving) 13-16
Diameter (D) 14.0mm
Length (L) 25m
Nominal ∅ 16mm
Nominal ∅ 5/8"
Pitch (P) 13mm
Wall (WT) 0.03"
Wall (WT) 0.8mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Intermittent Operating Temperature +140°C
Material Polypropylene (PP)
Material PP
Melting Point +284 °F (+140 °C)
Operating Temperature - °C -60 °C to +110 °C, intermittent +140 °C
UV-Resistant (Yes/No) No
EAN / GTIN 5022660178191
Packaging 3 - Height (m) 0.18m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 25
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0288
Packaging 3 - Weight (kg) 1.72kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 900
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 82.92kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
Weight 1.22kg
UNSPSC Key 39131604
