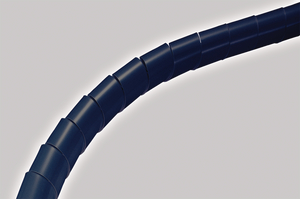

Spiral wrap, nom⌀10.6mm, -40 °C to +85 °C, natural, 50m
Art.-No. 161-06003 | TS-11N-PA6-NA |

Organises and protects cables and hoses
Very good protection against abrasion
Suitable for retro-fitting
Cables branch out at any point

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Spiral Binding >

Base Data

Application	Spiral binding is used for cable harnesses in the automobile industry and for many demanding industrial applications.
Colour	Natural (NA)
Material	Polyamide 6 (PA6)
PART DESCRIPTION	TS-11N-PA6-NA
Pack Content	50m
Package Content packed in	reel
Product Family	TS Series
Product Group	Spiral Binding
Type	TS-11N
Variant	Spiral Binding

Product Dimensions


⌀ (D2)	12mm
Diameter (D)	10.6mm
Length (L)	50m
Nominal ⌀	10.6mm
Pitch (P)	12mm
Wall (WT)	0.7mm

Downloads

RoHS datasheet

Download

Specifications

Flammability	UL 94 V2
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications
Specifications	ANSI/UL 746B, UL 1441, UL 224, UL 746A
UL File link	Link
UL-File Number	E304723

Logistics and Packaging

GTIN-13 / EAN

4944387508208
