Push-in wire connector, 3 conductors, 0.5 to 2.5 mm² solid wires / 1.0 to 2.5 mm² stranded wires, orange/transparent, 100pcs.
Art.-No. 148-90037 | HCPM-3-PC-CL/OG Details

  • 40 % smaller – Space saving design
  • Low insertion force – Easy to use, saves time on installation
  • Easy access to voltage test entry and innovative port shape design
  • Correct installation can be visually checked through transparent housing
  • Different colour codes for easy identification of size
  • Allows different conductor diameters in each entry
  • Safe application, installation and maintenance
  • Practical Variobox with 350 pcs. of selected HCPM wire connectors available (148-90046)
Show more
Package size

Request your individual offer now

Application HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in electrical installation applications. The new generation of HelaCon Plus Mini wire connectors can be applied tool-free using the push-in technology. HelaCon Plus Mini uses a double spring which is approved for solid and stranded wires.
Colour Orange (OG), Transparent (CL)
Material Polycarbonate (PC)
Number of Conductors 3
PART DESCRIPTION HCPM-3-PC-CL/OG
Pack Content 100pcs.
Package Content packed in box
Product Family HelaCon Plus Mini
Product Group Connectors - For Solid and Stranded Wires
Suitable for flexible core (Yes/No) No
Suitable for multi wire core (Yes/No) Yes
Suitable for solid core (Yes/No) Yes
Type HCPM-3

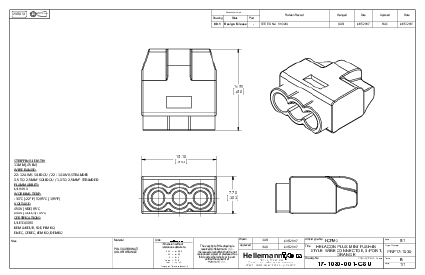

Depth (D) 16.5mm
Height (H) 7.70mm
Length (L) 16.5mm
Max Current 24A
Max Voltage 600V
Stripping Length 11mm
Width (W) 15.1mm
Wire Range (VDE) 0.5 to 2.5 mm² solid wires / 1.0 to 2.5 mm² stranded wires
Wire Range (cULus) 12-22 AWG Sol. Cu / 14-22 AWG Tin-dipped Str. Cu
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Operating Temperature -30 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications 2006/65/EC, ANSI/UL 486-A, ANSI/UL 486-B, ANSI/UL 486-C, cULus, DIN EN 60998-2-2:2005-03, EN 60998-2-2:2004, EN 60998-2-2:201, ENEC, NF EN 60695-2-10 (2013), NF EN 60695-2-11 (2014)
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL OCD link Link
UL-File Number E316080
UV-Stabilised No
GTIN-13 / EAN 4031026530604
Packaging 1 - Height (m) 0.099m
Packaging 1 - Length (m) 0.075m
Packaging 1 - Qty 100
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00037
Packaging 1 - Weight (kg) 0.181kg
Packaging 1 - Width (m) 0.05m
Packaging 3 - Height (m) 0.32m
Packaging 3 - Length (m) 0.37m
Packaging 3 - Qty 6300
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0296
Packaging 3 - Weight (kg) 13.478kg
Packaging 3 - Width (m) 0.25m
Packaging 4 - Height (m) 1.105m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 170100
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.061
Packaging 4 - Weight (kg) 384.906kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39131707
