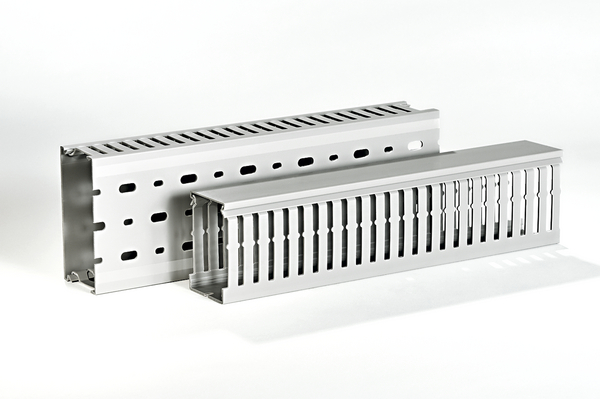

Wiring duct, 50x37.5mm, L=2000mm, grey, 32m
Art.-No. 185-40118 | HTWD-DIN 50X37.5-PVC-GY |

Copied

    • Narrow slots suitable for small-diameter wires
      Smooth, burr-free edges protect installers from injury and wires from damage
      Fingers can be removed with no sharp edges at pre-notched snap-off points
      Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
      Duct covers are easy to mount and remove, yet hold securely even in a vertical position and under vibration
      Cover is flush with side of duct, allowing for tight, contiguous placement of ducts
      Base perforation according to DIN EN 50085
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application HelaDuct HTWD-PD wiring ducts are used to route and protect wires in control panels and switching systems.
    Colour Grey (GY)
    Current leak stable Yes/No Yes
    Fixation Method Screw Mounting
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION HTWD-DIN 50X37.5-PVC-GY
    Pack Content 32m
    Package Content packed in box
    Type HTWD-DIN 50X37.5
    Type of side wall Slotted
    Height (H) 37.5mm
    Length (L) 2000mm
    Suitable for cross section 1152mm²
    Width (W) 50mm
    Width (W2) 5mm
    Width (W3) 7.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Operating Temperature -20 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Specifications EN 50085-25, UL
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) No
    UL-File Number E357929
    GTIN-13 / EAN 4031026427904
    Packaging 3 - Height (m) 0.18m
    Packaging 3 - Length (m) 2.03m
    Packaging 3 - Qty 32
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0658m³
    Packaging 3 - Weight (kg) 11.7kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.045m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.003m³
    Packaging 4 - Weight (kg) 332.5kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
