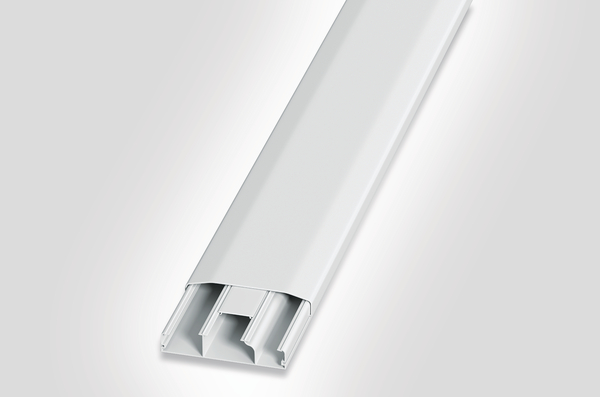

Wiring duct of wiring duct raceway system in self-extinguishing rigid PVC
Art.-No. 250-00085
| MC95x22-PVC-WH
|
Copied
- Effective separation between power cables, data, pipelines, gas, compressed air, water and others;
- Ideal for renovations, retrofits and new buildings;
- Easy to sanitize, allowing its use in hospitals, clinics and laboratories;
- Does not oxide, indicated for use in properties located in areas of sea air;
- Highly resistant material, reinforcements for support are not needed.
Show more
Show less
Request quote
More products in this product group:
Wiring duct of wiring duct raceway system in self-extinguishing rigid PVC
| Application | The wiring ducts of MEGACANAL system are indicated for installations where the effective separation between power cables, data cables, gas pipes, compressed air, water pipes, among others (given they have three fixed internal divisions), without the need to break walls, ensuring lower cost and reduced installation time. Partial covers provide independent access for easy maintenance. The perforation existing in the base of wiring duct allows quick and correct installation. Its cover is coated with vinyl film to protect against scratches during transportation and installation. The wiring duct is composed of base and cover with 2 meters in lenght, as well as a partial cover MCVTC. |
| Colour | White (WH) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | MC95x22-PVC-WH |
| Pack Content | 10pcs. |
| Package Content packed in | pack |
| Product Family | Megacanal system in PVC |
| Product Group | Wiring duct of wiring duct raceway system in self-extinguishing rigid PVC |
| Type | MC95x22 |
