31/10/2025

Accessory, grey, 36.58m (SCG)
Art.-No. 181-00003 | SCG-PVC-GY |

Copied

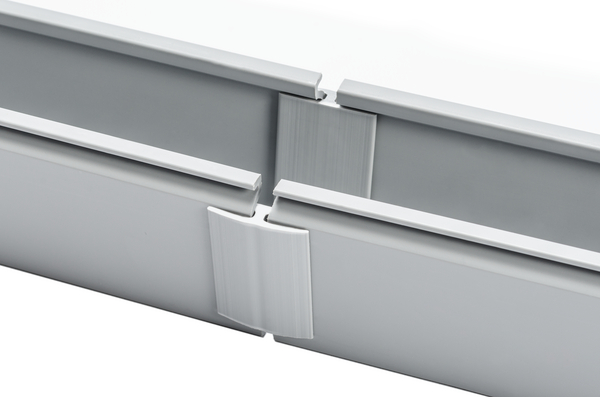

Straight connectors join straight duct runs to cover and protect wires.

    • Straight and 90 ° connections
    • Supplied in 0.5 meter bars
    • Can be cut to desired size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Straight and 90° accessories to connect Heladuct HD wiring ducts are supplied in 0.5 meter bars. These bars can be cut during the application in the necessary length for each wiring duct size.
    Colour Grey (GY)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION SCG-PVC-GY
    Pack Content 36.58m
    Package Content packed in carton
    Product Family SC Series
    Product Group Wiring Duct Connectors
    Type SCG
    UV-Stabilised No
    Height (H) 6.604mm
    Length (L) 1.83m
    Width (W) 23.9mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026425252
    Packaging 1 - Qty 20
    Packaging 1 - Type bag
    UNSPSC Key 39131713

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.

    Wiring ducts >
    Art.-No.: 181-00003 Contact
