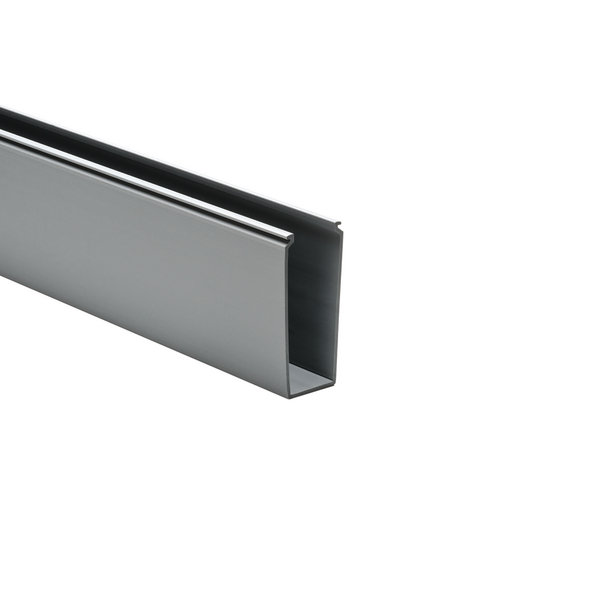

SD1.5X4-PVC-GY : SD1.5X4
Art.-No. 181-00574 | SD1.5X4-PVC-GY |  Details

Solid wall construction provides excellent coverage to keep wires clean.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Colour Grey (GY)
    Fixation Method Non-Adhesive
    Material Polyvinylchloride (PVC)
    Pack Content 36.58m
    Package Content packed in carton
    PART DESCRIPTION SD1.5X4-PVC-GY
    Fixing Hole Centres (F) 101.6mm
    Fixing Hole Centres (F) 4.0"
    Height (H) 103.4mm
    Length (L) 1.83m
    Width (W) 38.1mm
    Width (W2) 38.1mm
    Width (W2) 1.5"
    CE Certification Yes
    CSA Certified Yes
    Halogen-free No
    Operating Temperature +50 °C
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    GTIN-13 / EAN 4031026719412
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
