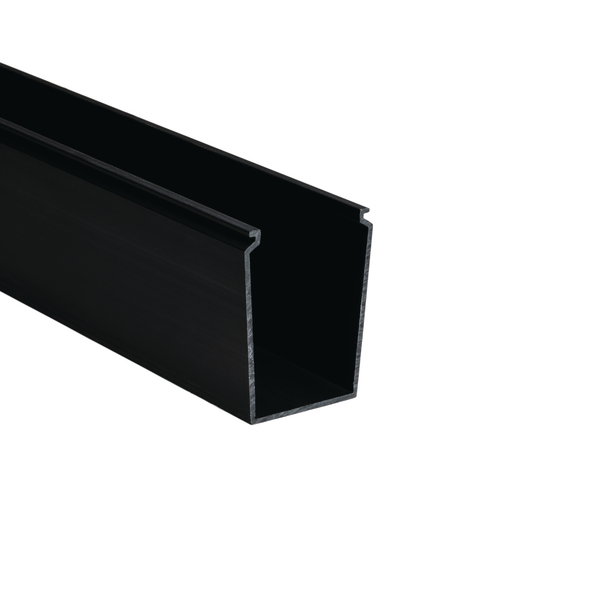

SD2X3-PVC-BK : SD2X3
Art.-No. 181-00205 | SD2X3-PVC-BK |  Details

Solid wall construction provides excellent coverage to keep wires clean.

    Add to watchlist

    Request your individual offer now

     Request quote
    Colour Black (BK)
    Material Polyvinylchloride (PVC)
    Pack Content 9.14m
    Package Content packed in box
    PART DESCRIPTION SD2X3-PVC-BK
    Fixing Hole Centres (F) 101.6mm
    Fixing Hole Centres (F) 4.0"
    Height (H) 77.9mm
    Length (L) 1.83m
    Width (W) 50.8mm
    Width (W2) 50.8mm
    Width (W2) 2.0"
    Width (W6) 12.7mm
    Width (W6) 0.5"
    CE Certification No
    CSA Certified Yes
    Halogen-free No
    Operating Temperature +50 °C
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    UNSPSC Key 39131712
