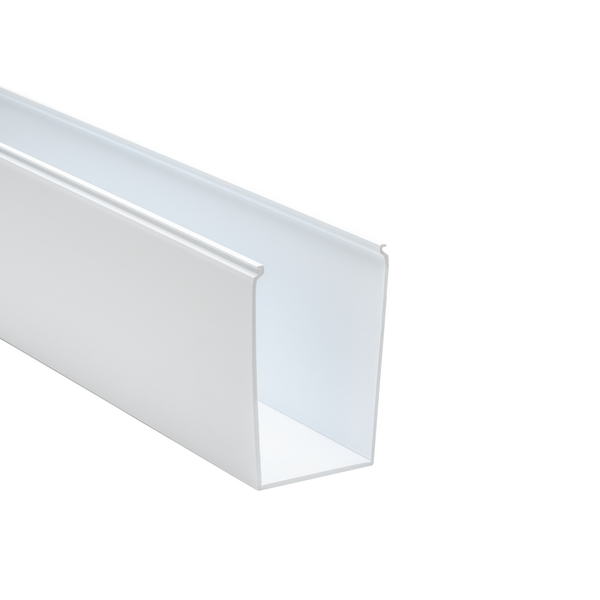

Wiring duct, 76.2x128.5mm, L=1.83m, white, 36.6m

Art.-No. 181-00475

| SD3X5-PVC-WH

|

Solid wall construction provides excellent coverage to keep wires clean.

Durable duct material protects wires from damage, with long-lasting performance.

Package size

9.14 m

36.6 m

Add to watchlist

Request quote

Downloads

Base Data

Colour	White (WH)
Fixation Method	Non-Adhesive
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	SD3X5-PVC-WH
Pack Content	36.6m
Package Content packed in	carton
Type	SD3X5
UV-Stabilised	No

Product Dimensions

Fixing Hole Centres (F)	4.0"
Fixing Hole Centres (F)	101.6mm
Height (H)	128.5mm
Length (L)	1.83m
Width (W)	76.2mm
Width (W2)	3.0"
Width (W2)	76.2mm
Width (W6)	25.4mm
Width (W6)	1.0"

Specifications

CE Certification	Yes
CSA Certified	Yes
Flammability	UL 94 V0
Halogen-free	No
Operating Temperature	+50 °C
ROHS compliant	Yes
Self extinguishing	Yes
Specifications
Specifications	CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	Yes
UL-File Number	E64139

Logistics and Packaging

GTIN-13 / EAN	4031026719337
Packaging 1 - Qty	20
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.269875m
Packaging 3 - Length (m)	1.8447m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.2173m³
Packaging 3 - Width (m)	0.4365625m

Solutions

Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
