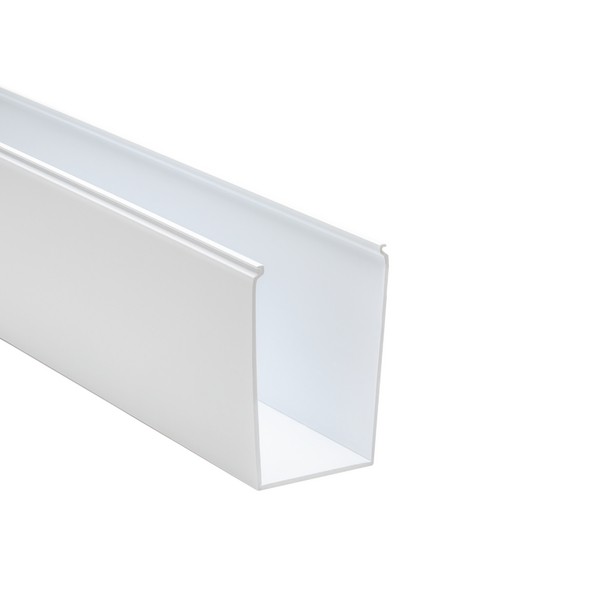

SD3X5-PVC-WH : SD3X5
Art.-No. 181-23057 | SD3X5-PVC-WH |  Details

Solid wall construction provides excellent coverage to keep wires clean.

    Add to watchlist

    Request your individual offer now

     Request quote
    Colour White (WH)
    Material Polyvinylchloride (PVC)
    Pack Content 9.14m
    Package Content packed in box
    PART DESCRIPTION SD3X5-PVC-WH
    Fixing Hole Centres (F) 101.6mm
    Fixing Hole Centres (F) 4.0"
    Height (H) 128.5mm
    Length (L) 1.83m
    Width (W) 76.2mm
    Width (W2) 76.2mm
    Width (W2) 3.0"
    Width (W6) 25.4mm
    Width (W6) 1.0"
    CE Certification No
    Halogen-free No
    Operating Temperature +50 °C
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    GTIN-13 / EAN 4031026526164
    UNSPSC Key 39131712
