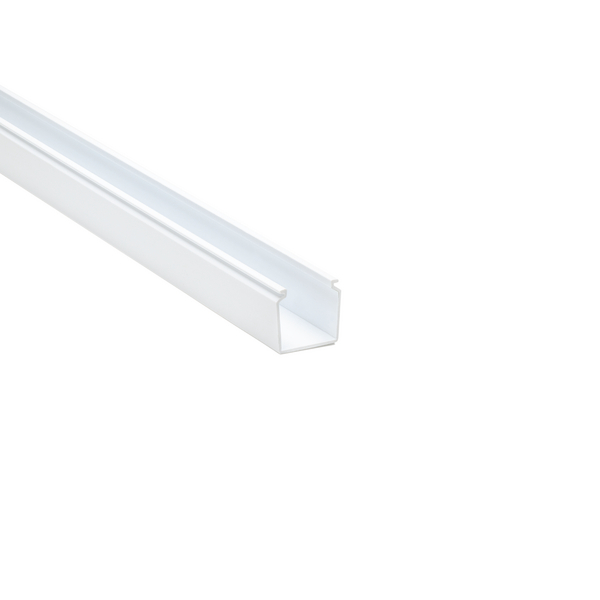

Wiring duct, 38.1x39.90mm, L=1.83m, white, 36.58m

Art.-No. 181-15504

| SDA1.5X1.5-PVC-WH

|

Pressure-sensitive, rubber-based adhesive backing aids in temporary positioning.

Durable duct material protects wires from damage, with long-lasting performance.

Solid wall construction provides excellent coverage to keep wires clean.

Add to watchlist

Request quote

Downloads

Base Data

Colour	White (WH)
Fixation Method	adhesive
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	SDA1.5X1.5-PVC-WH
Pack Content	36.58m
Package Content packed in	carton
Type	SDA1.5X1.5
UV-Stabilised	No

Product Dimensions

Fixing Hole Centres (F)	4.0"
Fixing Hole Centres (F)	101.6mm
Height (H)	39.90mm
Length (L)	1.83m
Width (W)	38.1mm
Width (W2)	1.5"
Width (W2)	38.1mm

Specifications

CE Certification	Yes
CSA Certified	Yes
Halogen-free	No
Operating Temperature	+50 °C
ROHS compliant	Yes
Self extinguishing	Yes
Specifications
Specifications	CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	Yes
UL-File Number	E64139

Solutions

Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.

Wiring ducts
