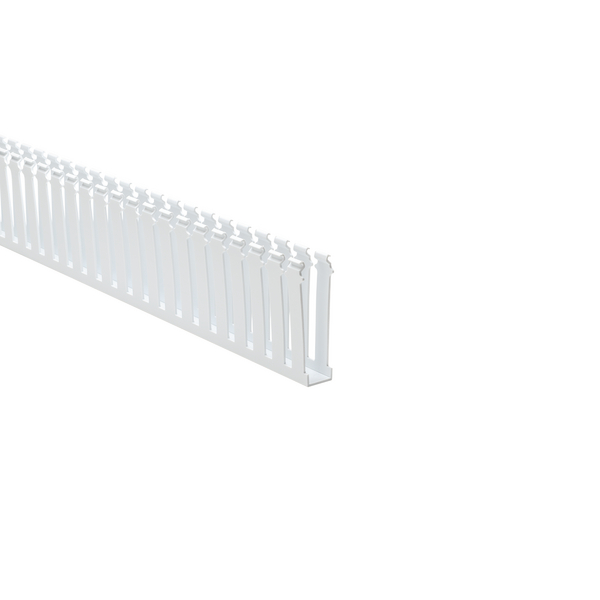

Wiring duct, 25.4x103.4mm, L=1.83m, white, 36.58m
Art.-No. 181-14006 | SL1X4-PVC-WH |

Copied
Strong fingers prevent unwanted breaking.
Strong fingers prevent unwanted breaking.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour White (WH)
    Fixation Method Non-Adhesive
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION SL1X4-PVC-WH
    Pack Content 36.58m
    Package Content packed in carton
    Type SL1X4
    UV-Stabilised No
    Fixing Hole Centres (F) 4.0"
    Fixing Hole Centres (F) 101.6mm
    Height (H) 103.4mm
    Length (L) 1.83m
    Width (W) 25.4mm
    Width (W2) 1.0"
    Width (W2) 25.4mm
    Width (W3) 0.4"
    Width (W3) 10.2mm
    Width (W4) 25.4mm
    Width (W4) 1.0"
    Width (W5) 3.6"
    Width (W5) 91.4mm
    CE Certification Yes
    CSA Certified Yes
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E64139
    GTIN-13 / EAN 4031026418544
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.2286m
    Packaging 3 - Length (m) 1.8637m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1353m³
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.

    Wiring ducts >
