21/07/2025

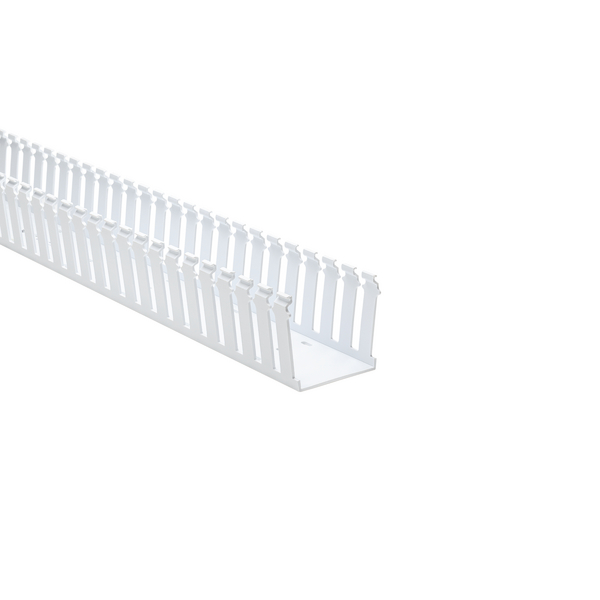

Wiring duct, 76.2x77.9mm, L=1.83m, white, 9.14m
Art.-No. 181-33017 | SL3X3-PVC-WH |

Copied
Strong fingers prevent unwanted breaking.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour White (WH)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION SL3X3-PVC-WH
    Pack Content 9.14m
    Package Content packed in pack
    Type SL3X3
    UV-Stabilised No
    Fixing Hole Centres (F) 4.0"
    Fixing Hole Centres (F) 101.6mm
    Height (H) 77.9mm
    Length (L) 1.83m
    Width (W) 76.2mm
    Width (W2) 3.0"
    Width (W2) 76.2mm
    Width (W3) 0.4"
    Width (W3) 10.2mm
    Width (W4) 25.4mm
    Width (W4) 1.0"
    Width (W5) 2.6"
    Width (W5) 66.0mm
    Width (W6) 25.4mm
    Width (W6) 1.0"
    CE Certification No
    CSA Certified Yes
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E64139
    GTIN-13 / EAN 4031026720081
    Packaging 1 - Type box
    Packaging 3 - Height (m) 0.2286m
    Packaging 3 - Length (m) 1.8764m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.109m³
    Packaging 3 - Width (m) 0.254m
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.

    Wiring ducts >
