21/07/2025

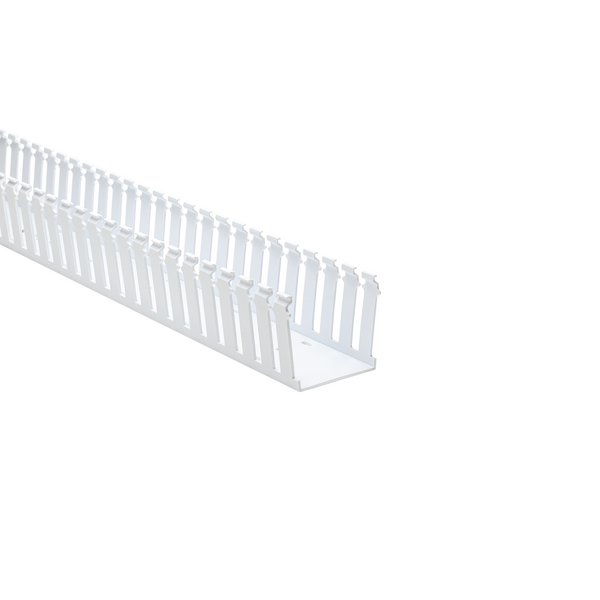

Wiring duct, 76.2x77.9mm, L=1.83m, white, 36.58m
Art.-No. 181-33018 | SL3X3-PVC-WH |

Copied
Strong fingers prevent unwanted breaking.
Strong fingers prevent unwanted breaking.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour White (WH)
    Fixation Method Non-Adhesive
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION SL3X3-PVC-WH
    Pack Content 36.58m
    Package Content packed in carton
    Type SL3X3
    UV-Stabilised No
    Fixing Hole Centres (F) 4.0"
    Fixing Hole Centres (F) 101.6mm
    Height (H) 77.9mm
    Length (L) 1.83m
    Width (W) 76.2mm
    Width (W2) 3.0"
    Width (W2) 76.2mm
    Width (W3) 0.4"
    Width (W3) 10.2mm
    Width (W4) 25.4mm
    Width (W4) 1.0"
    Width (W5) 2.6"
    Width (W5) 66.0mm
    Width (W6) 25.4mm
    Width (W6) 1.0"
    CE Certification Yes
    CSA Certified Yes
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E64139
    GTIN-13 / EAN 4031026667256
    Packaging 1 - Type carton
    Packaging 3 - Height (m) 0.180975m
    Packaging 3 - Length (m) 1.85261m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1379m³
    Packaging 3 - Width (m) 0.4111625m
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.

    Wiring ducts >
