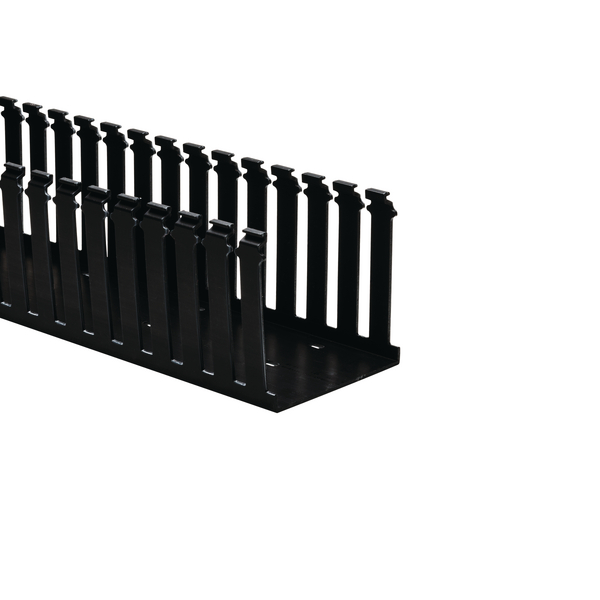

Wiring duct, 101.6x103.4mm, L=1.83m, black, 18.3m

Art.-No. 181-44020

| SL4X4-PVC-BK

|

Strong fingers prevent unwanted breaking.

Package size

9.14 m

18.3 m

Add to watchlist

Request quote

Downloads

Base Data

Colour	Black (BK)
Fixation Method	Non-Adhesive
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	SL4X4-PVC-BK
Pack Content	18.3m
Package Content packed in	carton
Type	SL4X4
UV-Stabilised	No

Product Dimensions

Fixing Hole Centres (F)	4.0"
Fixing Hole Centres (F)	101.6mm
Height (H)	103.4mm
Length (L)	1.83m
Width (W)	101.6mm
Width (W2)	4.0"
Width (W2)	101.6mm
Width (W3)	0.4"
Width (W3)	10.2mm
Width (W4)	25.4mm
Width (W4)	1.0"
Width (W5)	3.6"
Width (W5)	91.4mm
Width (W6)	38.1mm
Width (W6)	1.5"

Specifications

CE Certification	Yes
CSA Certified	Yes
Flammability	UL 94 V0
Halogen-free	No
Operating Temperature	+50 °C
ROHS compliant	Yes
Self extinguishing	Yes
Specifications
Specifications	CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	Yes
UL-File Number	E64139

Logistics and Packaging

GTIN-13 / EAN	4031026126951
Packaging 1 - Qty	10
Packaging 1 - Type	carton
Packaging 1 - Weight (kg)	1.0000kg
Packaging 2 - Qty	1
Packaging 3 - Height (m)	0.2270125m
Packaging 3 - Length (m)	1.84785m
Packaging 3 - Qty	25
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.2344m³
Packaging 3 - Width (m)	0.5588m
Packaging 4 - Length (m)	1.20m
Packaging 4 - Type	pallet
Packaging 4 - Width (m)	0.80m

Solutions

Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.

Wiring ducts
