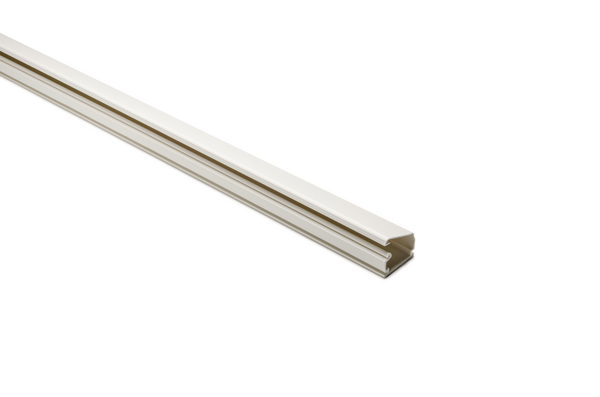

TSRP1-6A-PVC-WH
Art.-No. 250-61600 | TSRP1-6A-PVC-WH |

Copied
UL listed for power up to 600 volts, meeting UL5A and CSA.22.2 Number 62-93 Standards.
UL listed for power up to 600 volts, meeting UL5A and CSA.22.2 Number 62-93 Standards.
TSRP rated boxes can be used for electrical or data outlets.
TSRP rated boxes can be used for electrical or data outlets.
TSRP rated boxes can be used for electrical or data outlets.
TSRP rated boxes can be used for electrical or data outlets.
TSRP rated boxes can be used for electrical or data outlets.
TSRP rated boxes can be used for electrical or data outlets.
Rubber-based foam tape adhesive with high ultimate-bond strength conforms to any surface.
Rubber-based foam tape adhesive with high ultimate-bond strength conforms to any surface.
Rubber-based foam tape adhesive with high ultimate-bond strength conforms to any surface.
UL listed for power up to 600 volts, meeting UL5A and CSA.22.2 Number 62-93 Standards.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Office White (OEWH)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION TSRP1-6A-PVC-WH
    Pack Content 36.58m
    Package Content packed in carton
    Type TSRP1-6A
    UV-Stabilised No
    Height (H) 12.70mm
    Height (H2) 12.70mm
    Length (L) 1.83m
    Width (W) 19.05mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E192902
    GTIN-13 / EAN 4031026721910
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.10795m
    Packaging 3 - Length (m) 1.86055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0236m³
    Packaging 3 - Width (m) 0.117475m
    UNSPSC Key 39131710

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
