10/09/2025

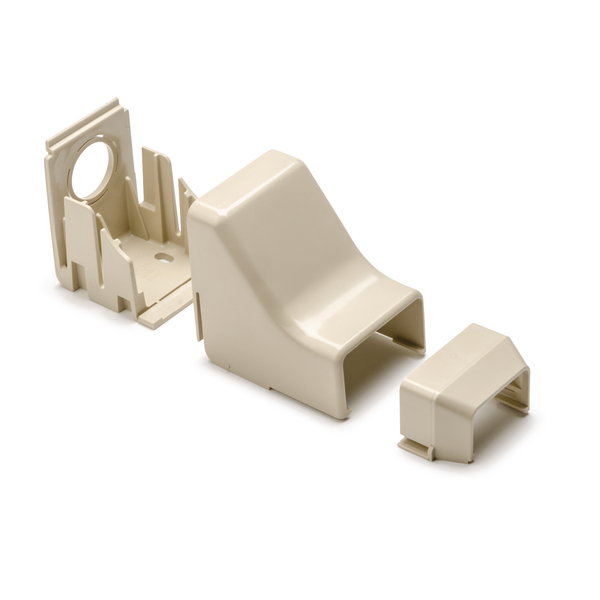

TSRP2-50-PVC-BGE
Art.-No. 250-62501 | TSRP2-50-PVC-BGE |

Copied
Flexible hinge allows the raceway to endure numerous openings without creating discoloration or stress cracking.
UL listed for power up to 600 volts, meeting UL5A and CSA.22.2 Number 62-93 Standards.
UL listed for power up to 600 volts, meeting UL5A and CSA.22.2 Number 62-93 Standards.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Ivory (IV)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION TSRP2-50-PVC-BGE
    Pack Content 10pcs.
    Package Content packed in pack
    Type TSRP2-50
    UV-Stabilised No
    Height (H) 76.91mm
    Length (L) 62.81mm
    Wall (WT) 1.78mm
    Wall (WT) 0.07"
    Width (W) 49.78mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E211305
    GTIN-13 / EAN 4031026722191
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    UNSPSC Key 39131711

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
