04/12/2024

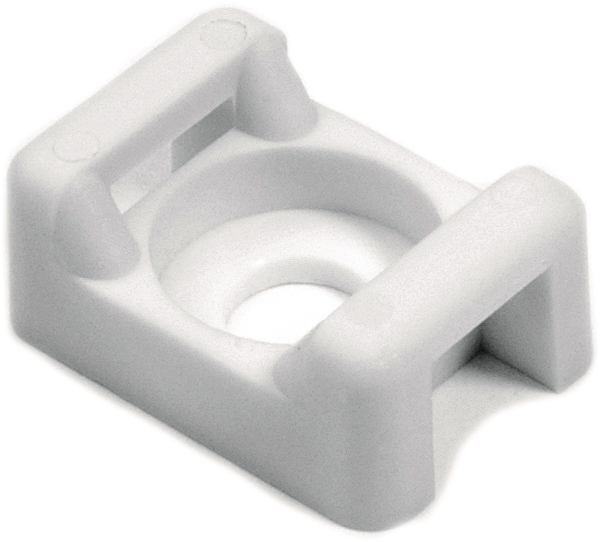

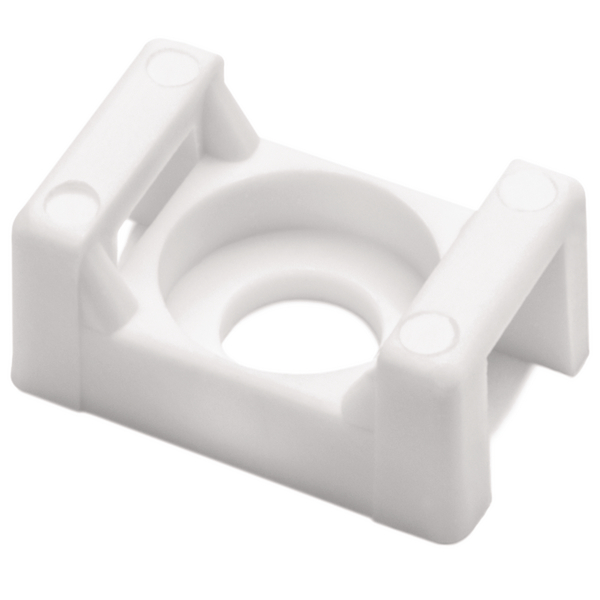

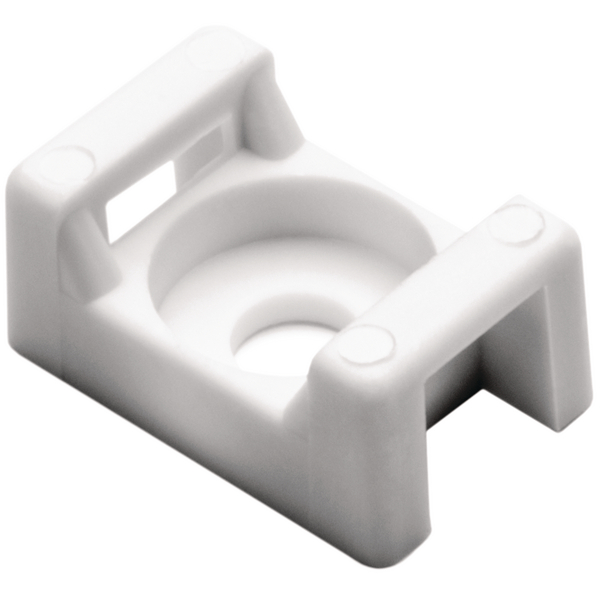

Cable tie mount for screw fixation, Wmax=5.0mm, ∅4.8 mm, #8 (M4) Screw, white, 100pcs.
Art.-Nr. 151-30405 | CTM1-PA66-WH Details

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration
  • Mounts are available in various sizes and materials
Package size

Request your individual offer now

Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.
Colour White (WH)
Fixation Method Screw Mounting and Rivet
For Ties T18 - T50
Material Polyamide 6.6 (PA66)
Mounting Screw Type #8 (M4) Screw
PART DESCRIPTION CTM1-PA66-WH
Pack Cont. 100pcs.
Package Content packed in bag
Product Family Cable tie mounts with curved design
Product Group Screw fixing mounts
Short Description Cable Tie Mount with curved design 14.7x9.4x6.9 mm white
Type CTM1
Height (H) 6.9mm
Length (L) 14.7mm
Strap Width max. (G) 0.2"
Strap Width max. (G) 5.0mm
Weight/Unit 0.0005kg
Width (W) 9.4mm
for Hole ∅ (FH) 4.8 mm
CE Certification Yes
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications UL 62275
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026312552
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.17m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00034
Packaging 1 - Weight (kg) 0.050001kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.20955m
Packaging 3 - Length (m) 0.517525m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0344
Packaging 3 - Weight (kg) 3.11005kg
Packaging 3 - Width (m) 0.3175m
Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146
Packaging 4 - Weight (kg) 83.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
