12/06/2025

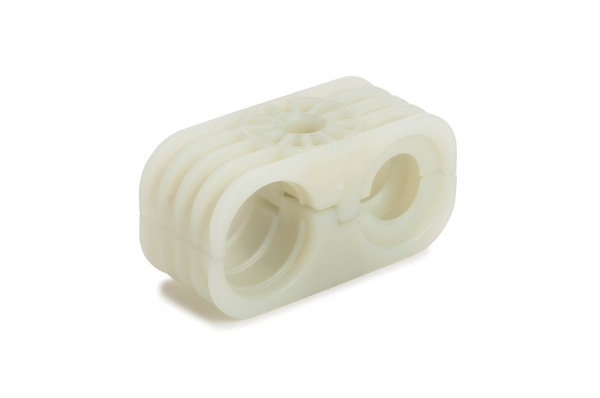

Cable tie mount with pipe/tube holder, ⌀8.2 mm, natural, 600pcs.
Art.-Nr. 151-03256 | HDCM2D-PA66GF15-NA |

Copied
Separates and secures bundles or convoluted tubing to prevent abrasion.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Key product features for multiple routing, releasable
    Material Polyamide 6.6, glass-fibre reinforced (PA66GF15)
    PART DESCRIPTION HDCM2D-PA66GF15-NA
    Pack Cont. 600pcs.
    Package Content packed in bag
    Type HDCM2D
    Variant Separators
    ⌀ max. 1. loop 23.7mm
    ⌀ max. 2. loops 15.00mm
    Height (H) 34mm
    Length (L) 69.1mm
    UV-Stabilised No
    Weight/Unit 0.01kg
    Width (W) 28.48mm
    for Hole ⌀ (FH) 8.2 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026646589
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 600
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Weight (kg) 6.0kg
    Packaging 3 - Width (m) 0.314325m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
