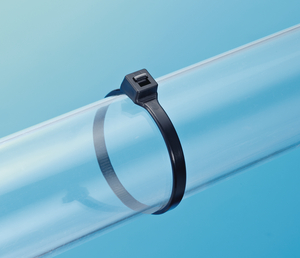

Cable tie inside serrated, 220x4.7mm, ⌀10-50mm, black, 100pcs.
Art.-Nr. 111-01716 | DL220-PA9THS-BK |

Copied
Dinalok with white circle.

    • For high temperature application from -40° C up to +150° C
    • Close-fitting to the cable bundle due to the deepening head shape
    • Easy insertion combined with high tensile strength
    • Easy application either manually or with a processing tool
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application Dynalock have been designed for the use in hazardous environment. Its suitablility for high temperature applications makes it useful for the drilling industry, railway, offshore or automotive industry. The excellent chemical and radium ray resistance is predestinied for applications in medical engineering, chemical industry and power stations.
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 9T, heat stabilised (PA9THS)
    Min.Tensile Strength 350N
    PART DESCRIPTION DL220-PA9THS-BK
    Package Content 100pcs.
    Package Content packed in bag
    Product Family Dynalok
    Product Group Cable ties for high temperature applications up to +150 °C
    Releasable Closure (Yes/No) No
    Type DL220
    Variant Inside Serrated
    Weight/Unit 0.00156kg
    Bundle ⌀ 10-50mm
    Bundle ⌀ max. 50mm
    Bundle ⌀ min. 10mm
    Length (L) 220mm
    Thickness (T) 1.3mm
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387111682
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.156001kg

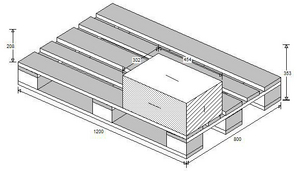

    Packaging 3 - Height (m) 0.21m
    Packaging 3 - Length (m) 0.455m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0296m³
    Packaging 3 - Weight (kg) 8.04005kg
    Packaging 3 - Width (m) 0.31m

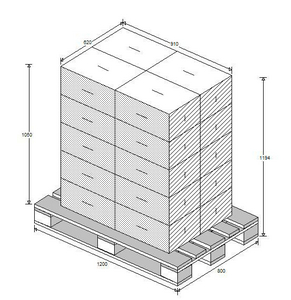

    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 181.8kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
