29/03/2024

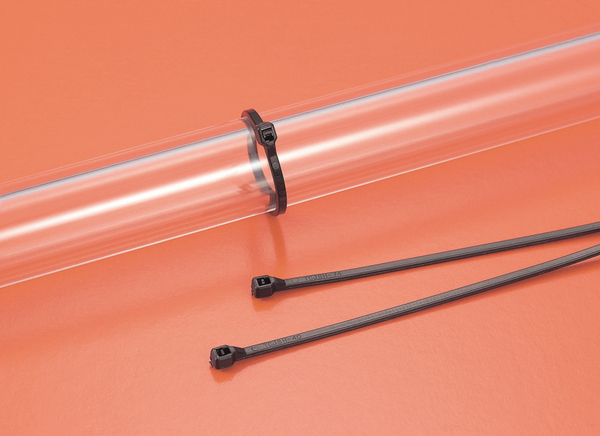

Cable tie inside serrated, 100.0x1.8mm, Ø1.0-22.0mm, black, 1000pcs.
Art.-Nr. 111-00618 | SHT18R-PA66W-BK Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

e-Learning
Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour Black (BK)
Identification Plate Position none
Material Polyamide 6.6, UV-resistant (PA66W)
Pack Cont. 1000pcs.
Package Content packed in bag
PART DESCRIPTION SHT18R-PA66W-BK
Product Family T-Series in PA66W black
Product Group Cable Ties for outdoor use (UV-resistant)
Releasable Closure (Yes/No) No
Variant Inside Serrated
Bundle Diameter max (metric) 22.0mm
Bundle ∅ 1.0-22.0mm
Bundle ∅ min. 1.0mm
Cable Tie Head Height (metric) 2.6mm
Length (L) 100.0mm
Min.Tensile Strength 80N
Thickness (T) 1.2mm
Width (W) 1.8mm
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E64962
Country of Origin JP
GTIN-13 / EAN 4944387122305
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
