23/07/2025

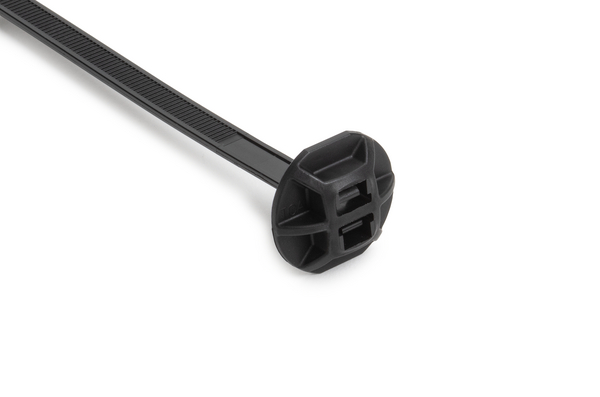

Cable tie inside/outside serrated for direct fixation, 390.9x7.4mm, ⌀6.0-105.0mm, black, 2000pcs.
Art.-Nr. 132-00050 | BT150L1PC-PA66HIRHSUV-BK

Copied
  • Intuitive one-piece design eliminates the need for multiple components, simplifying assembly.
  • Integrated pilot bushing ensures secure fit in hole and provides abrasion protection.
  • High impact modified, heat-resistant, UV stabilized material is ideal for long-term performance, even in extreme weather.
Package size

Request your individual offer now

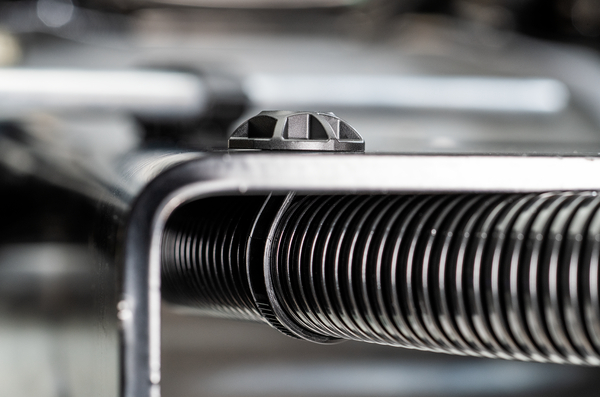

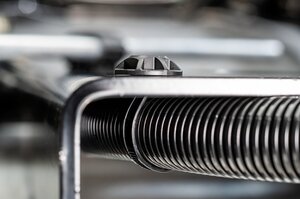

Application This 1-piece button head mount secures cables and wire bundles to panels. The design allows the strap to be wrapped clockwise or counter-clockwise around the bundle, assisting the installer by removing the necessity to first check the tie's orientation. Made from impact-modified, heat-resistant, UV stabilized Polyamide 6.6 material, it will withstand extreme environments.
Colour Black (BK)
Description This 1-piece button head mount secures cables and wire bundles to panels. The design allows the strap to be wrapped clockwise or counter-clockwise around the bundle, assisting the installer by removing the necessity to first check the tie's orientation. Made from impact-modified, heat-resistant, UV stabilized Polyamide 6.6 material, it will withstand extreme environments.
Fixation Method Button Head
Identification Plate Position none
Key product features for direct fixation
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Min.Tensile Strength 667N
PART DESCRIPTION BT150L1PC-PA66HIRHSUV-BK
Package Content 2000pcs.
Package Content packed in pack
Product Family Chassis ties
Product Group Cable ties for single hole application
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type BT150L1PC
UV-Stabilised Yes
Variant Inside/Outside Serrated
Bundle ⌀ 6.0-105.0mm
Bundle ⌀ max. 105.0mm
Bundle ⌀ min. 6.0mm
Disc ⌀ 25.8mm
Height (H) 7.4mm
Length (L) 390.9mm
Panel Thickness max. 6.35mm
Thickness (T) 1.6mm
Width (W) 7.4mm
for Hole ⌀ (FH) 11.0 - 20.0 mm
for Panel Thickness min - max 6.4
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin US
GTIN-13 / EAN 4031026736655
Packaging 1 - Qty 2000
Packaging 1 - Type bag
Packaging 3 - Height (m) 0.37465m
Packaging 3 - Length (m) 0.59055m
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0646
Packaging 3 - Width (m) 0.2921m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
