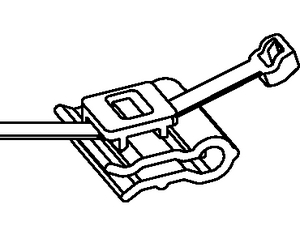

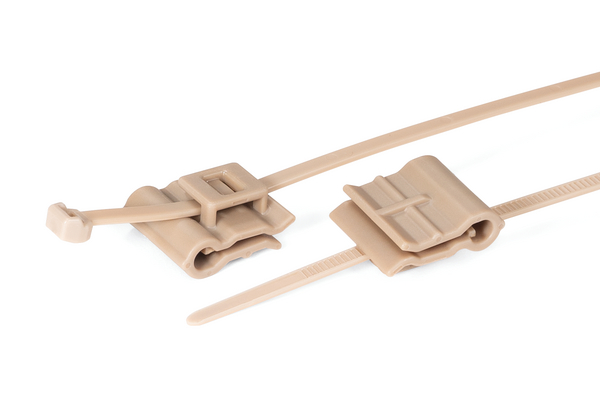

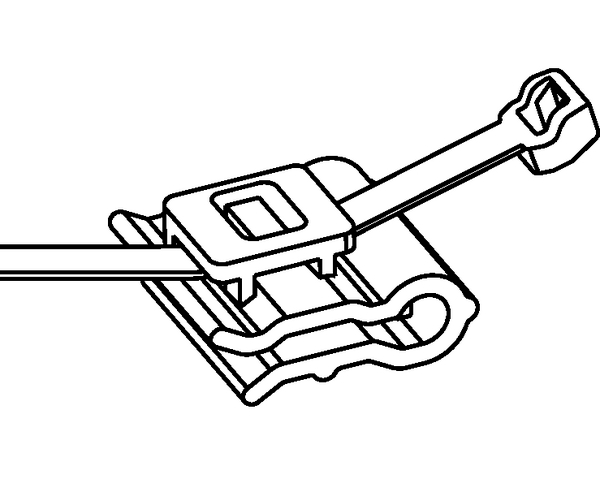

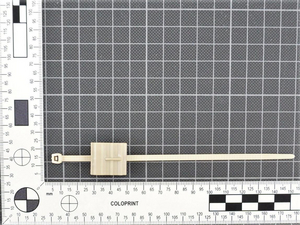

Fixing tie for edge, outside serrated, Ø4.0-32.0mm, beige, 1000pcs.
Art.-Nr. 156-04160
| PT2APEC1.2SP-PEEK/PEEKGF15-BGE
|
Details
- Pre-assembled 2-piece fixing tie with EdgeClip
- Easy to assemble by hand
- Cable tie head can be moved after bundling
- For edges of 1.0 - 1.4 mm
- Secure fixing of the EdgeClip into drill hole
- Ideal for use wherever space is at its premium
Request your individual offer now
Request quote
More products in this product group:
| Application | Due to the tie's reduced installation height it is ideal for use wherever space is at a premium. |
| Application Tool | MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP |
| Colour | Beige (BGE) |
| Description | This EdgeClip is very easy to mount. The holding tab snaps into the drill hole very securely. You will hear and feel the connection being made during mounting. Cable ties from a variety of product series and varying in terms of their dimensions and materials can be used in conjunction with this fixing element. |
| Fixation Method | Edge Clips without metal insert |
| Foot Part | Polyetheretherketone (PEEK) |
| Identification Plate Position | none |
| Material | Polyetheretherketone (PEEK), Polyetheretherketone, glass-fibre reinforced (PEEKGF15) |

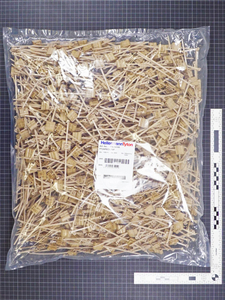

| Pack Cont. | 1000pcs. |
| Package Content packed in | bag |
| PART DESCRIPTION | PT2APEC1.2SP-PEEK/PEEKGF15-BGE |
| Product Family | for drill holes |
| Product Group | 2-Piece Fixing Ties for Edges, with Holes |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 32.0mm |
| Bundle ∅ | 4.0-32.0mm |
| Bundle ∅ min. | 4.0mm |
| for Hole ∅ (FH) | 5.8 - 6.2 mm |
| for Panel Thickness min - max | 1 - 1.4 mm |
| Height (H) | 10.5mm |
| Length (L) | 145.0mm |
| Length (L2) | 21.4mm |
| Min.Tensile Strength | 230N |
| Panel Thickness max. | 1.0 - 1.4mm |
| Weight/Unit | 0.002733kg |
| Width (W) | 3.4mm |
| Width (W2) | 19.0mm |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026679952 |
| Packaging 1 - Height (m) | 0.075m |
| Packaging 1 - Length (m) | 0.55m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0198m³ |
| Packaging 1 - Weight (kg) | 2.776597kg |
| Packaging 1 - Width (m) | 0.48m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
