17/05/2024

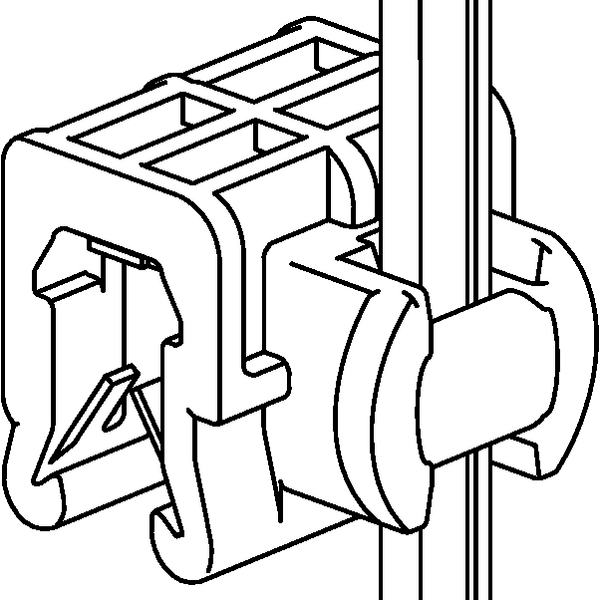

Fixing tie for edge, inside serrated, Ø1.5-35.0mm, black, 500pcs.
Art.-Nr. 156-00957 | T30RATSEC38-PA66HS/PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T30RATSEC38-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Edges, 1,5 - 4,0 mm
    Type T30RATSEC38
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 1.1mm
    Height (H2) 14.5mm
    Length (L) 148.0mm
    Length (L2) 15.0mm
    Min.Tensile Strength 135N
    Panel Thickness max. 1.5-4.0mm
    Width (W) 3.6mm
    Width (W2) 16.4mm
    for Panel Thickness min - max 1.5 - 4 mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026449760
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
