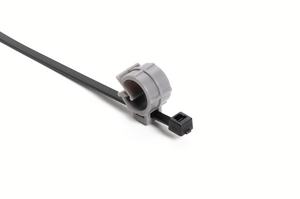

Fixing tie with pipe/tube holder, ⌀5.0-30mm, black, 100pcs.
Art.-Nr. 156-00894
| T30ROC5J-P-PA66HSUV-BK
|
Copied
- Fixed the cable and piping in the tie, the clip portion is freely moved cable installed.
- The clip portion can be attached to the cable of up to 5mm diameter in one touch.
- After putting the cable in the clip part, you can adjust the position of the cable by sliding with anti-slip function, the degree of freedom of design is enlarged.
Request quote
More products in this product group:
| Cable Tie | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| Colour | Black (BK) |
| Fixation Method | Omega Clip |
| Identification Plate Position | none |
| Key product features | lockable, rotatable |
| Material | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| Min.Tensile Strength | 135N |
| PART DESCRIPTION | T30ROC5J-P-PA66HSUV-BK |
| Package Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | Omega clip tie T30ROC5J_Series |
| Product Group | 2-piece fixing ties with pipe clip |
| Releasable Closure (Yes/No) | No |
| Type | T30ROC5J-P |
| Typical Application | Can be used for fixing on cables, piping, and sliding at the same time. |
| UV-Stabilised | Yes |
| Weight/Unit | 0.00207kg |
|
|
|
| Country of Origin | JP |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4944387101201 |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 0.207001kg |
| Packaging 3 - Height (m) | 0.315m |
| Packaging 3 - Length (m) | 0.505m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0589m³ |
| Packaging 3 - Weight (kg) | 4.67002kg |
| Packaging 3 - Width (m) | 0.37m |
| Packaging 4 - Height (m) | 1.089m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.045m³ |
| Packaging 4 - Weight (kg) | 78.04kg |
| Packaging 4 - Width (m) | 0.8m |
