Fixing tie for hole (round), inside serrated, ⌀1.6-32.0mm, black, 500pcs.
Art.-Nr. 126-00211 | T30RSF-PA66HS-BK |

Copied
Fixing tie for round holes with Arrowhead.
The arrowhead design allows these fixing ties to be used in areas with limited space.
The arrowhead design of this push mount inserts easily and locks securely in place.
T30RSF

    This product is not available anymore.

    Alternative product available

    • Easy to assemble without the need for a tool
      Fixing tie with arrowhead without wings
      Arrowhead simply locks into place
      Cable tie head always situated in defined position
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The arrowhead design is usefull in areas with limited space.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Min.Tensile Strength 135N
    PART DESCRIPTION T30RSF-PA66HS-BK
    Package Content 500pcs.
    Package Content packed in bag
    Product Family without wings and disc, for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead
    Releasable Closure (Yes/No) No
    Short Description 1-Piece fixing tie 158x3.6 mm, with arrowhead, heat stabilised, natural
    Tie Closure plastic pawl
    Type T30RSF
    Variant Inside Serrated
    Weight/Unit 0.000803kg
    Bundle ⌀ 1.6-32.0mm
    Bundle ⌀ max. 32.0mm
    Bundle ⌀ min. 1.6mm
    Length (L) 158.0mm
    Panel Thickness max. 0.9 – 2.4mm
    Thickness (T) 1.2mm
    Width (W) 3.6mm
    for Hole ⌀ (FH) 4.7 - 5.6 mm
    for Panel Thickness min - max 0.9 - 2.4 mm
    for Panel Thickness min - max 0 - 0.1 "
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 62275, CSA -C22.2 no. 62275
    UL Recognized (US and Canada) Yes
    UL-File Number E64963
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660344152
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.325m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.003575m³
    Packaging 1 - Weight (kg) 0.401501kg
    Packaging 1 - Width (m) 0.2m
    Packaging 3 - Height (m) 0.201m
    Packaging 3 - Length (m) 0.511m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0319m³
    Packaging 3 - Weight (kg) 4.63901kg
    Packaging 3 - Width (m) 0.311m

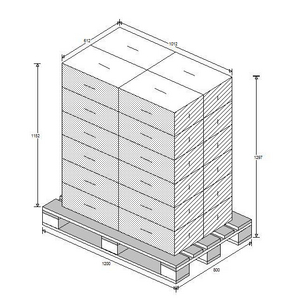

    Packaging 4 - Height (m) 1.296m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.244m³
    Packaging 4 - Weight (kg) 132.336kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
