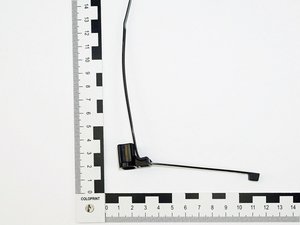

Fixing tie for stud, inside serrated, ⌀2.0-45.0mm, black, 500pcs.
Art.-Nr. 156-00083 | T50RSB5CSD-PA66HS-BK |

Copied
SB5CSD

    This product is not available anymore.

    Alternative product available

    • Pre-assembled with cable tie and weld stud mounting base
      Quick and easy installation
      Head rotates into perfect position for installation
      'Soft-push' design for tool-free installation
      Mushroom-shaped SBH handles insulation or a sound-deadening blanket
      SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
      SB5 allow lateral tolerance for fixing point
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Anti rotation (Yes / No) YES
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50RSB5CSD-PA66HS-BK

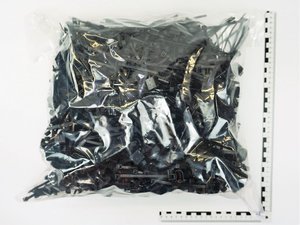

    Package Content 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Weld , moveable
    Tie Closure plastic pawl
    Type T50RSB5CSD
    Variant Inside Serrated
    Weight/Unit 0.0034kg
    Bundle ⌀ 2.0-45.0mm
    Bundle ⌀ max. 45.0mm
    Bundle ⌀ min. 2.0mm

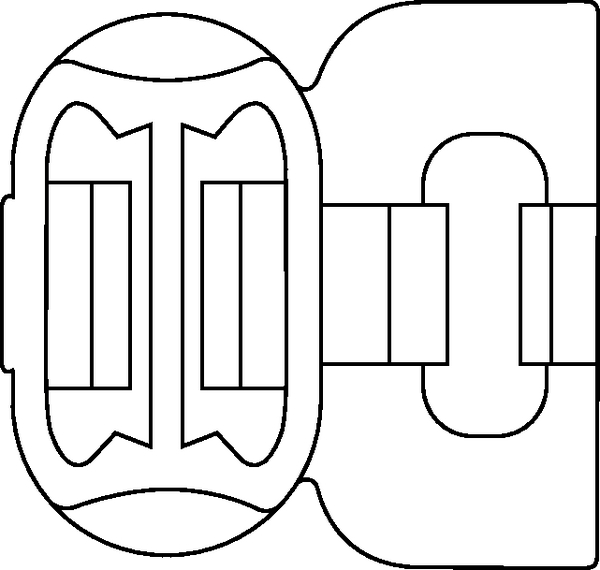

    Fixing Hole Shape Oval
    Height (H) 1.2mm
    Height (H2) 17.2mm
    Length (L) 200mm
    Length (L2) 22.0mm
    Max Stud Length 15.5mm
    Min Stud Length 14.2mm
    Stud ⌀ 5.0 mm
    Width (W) 4.6mm
    Width (W2) 23.1mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026253541
    Packaging 1 - Height (m) 0.18m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.046107m³
    Packaging 1 - Weight (kg) 1.993597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.794388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 126.552kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
