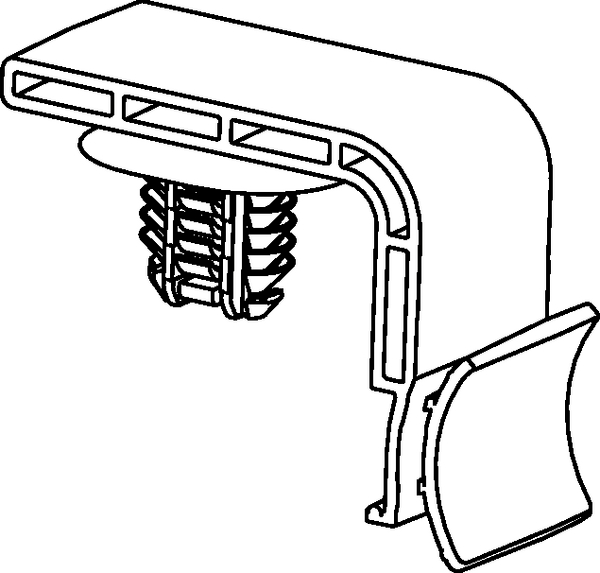

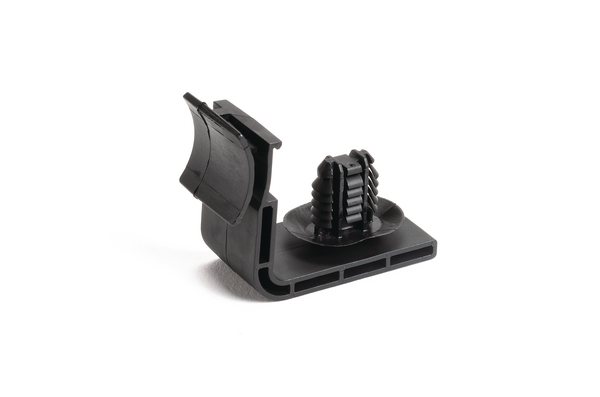

Bundling clip for hole (round), L=66.0mm, SO=32.0mm, black, 1000pcs.
Art.-Nr. 151-01681 | BCFTOVALAPILLAR-PA66HIRHSUV-BK |

Copied
Bundling clip with oval fir tree provides an uncomplicated method for fastening bundles, hoses, or pipes.

    • Simple installation, tool-free
    • Is attached to the bundle element with cable ties or adhesive tape
    • The oval base geometry serves as anti-twist protection and for defined cable routing
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION BCFTOVALAPILLAR-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in pack
    Type BCFTOVALAPILLAR
    Bundling Bar Length 66.0mm
    Fixing Hole Shape Oval
    Length (L) 45.7mm
    Length (L2) 45.7mm
    Offset Length 32.0mm
    Panel Thickness max. 0.6 - 6.75mm
    UV-Stabilised Yes
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026568775
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
