21/05/2025

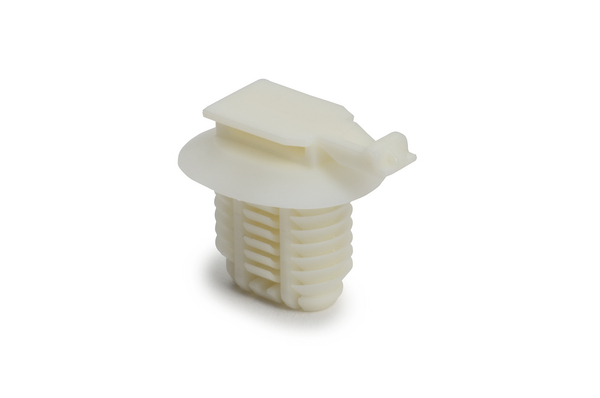

Connector clip, EWCAP-005-11, natural, 3000pcs.
Art.-Nr. 151-04266 | CC18-PA66HIRHS-NA |

Copied

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC18-PA66HIRHS-NA
    Pack Cont. 3000pcs.
    Package Content packed in carton
    Type CC18
    Fixing Hole Shape Oval
    Height (H) 23.57mm
    Height (H2) 16.50mm
    Length (L) 30.29mm
    Min.Tensile Strength 155N
    Panel Thickness max. 0.6 - 9.5mm
    Width (W) 20.32mm
    for Hole ⌀ (FH) 9.0 x 17.0 mm
    for Panel Thickness min - max 0.6 - 9.5 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026746425
    Packaging 1 - Type box
    Packaging 3 - Height (m) 0.0001016m
    Packaging 3 - Length (m) 0.889m
    Packaging 3 - Type bag
    Packaging 3 - Volume (m³) 0.0001m³
    Packaging 3 - Width (m) 0.7112m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
