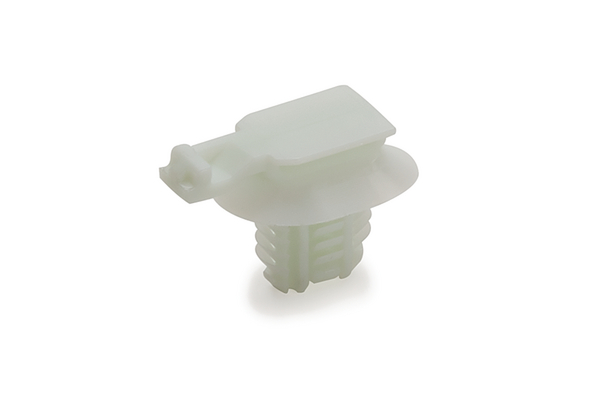

Connector clip for hole (oval), EWCAP-005-11, natural, 5000pcs.
Art.-Nr. 151-01259
| CCOVAL-PA66HIRHS-NA
|
Copied
- The fir tree branch design on all four sides makes a 360-degree interface with the panel, creating a more secure fit into the hole.
- The disc on the top of the fir tree covers the hole and minimizes the ingress of water and dirt.
- The oval hole fir tree fits 4 common automotive oval hole sizes.
- The specific connector slot on this part reduces rattle and movement of clip to the wire harness connector.
Request quote
More products in this product group:
| Application | A clip to connect common connectors |
| Colour | Natural (NA) |
| Fixation Method | Fir Tree for oval holes |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | CCOVAL-PA66HIRHS-NA |
| Package Content | 5000pcs. |
| Package Content packed in | carton |
| Product Family | with fir tree |
| Product Group | Connector clips for oval holes |
| Type | CCOVAL |
| UV-Stabilised | No |
| Weight/Unit | 0.001197kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026479828 |
| Packaging 1 - Height (m) | 0.19m |
| Packaging 1 - Length (m) | 0.504m |
| Packaging 1 - Qty | 5000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.02939832m³ |
| Packaging 1 - Weight (kg) | 5.985001kg |
| Packaging 1 - Width (m) | 0.307m |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.5175m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 6.605001kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 154.1kg |
| Packaging 4 - Width (m) | 0.8m |
