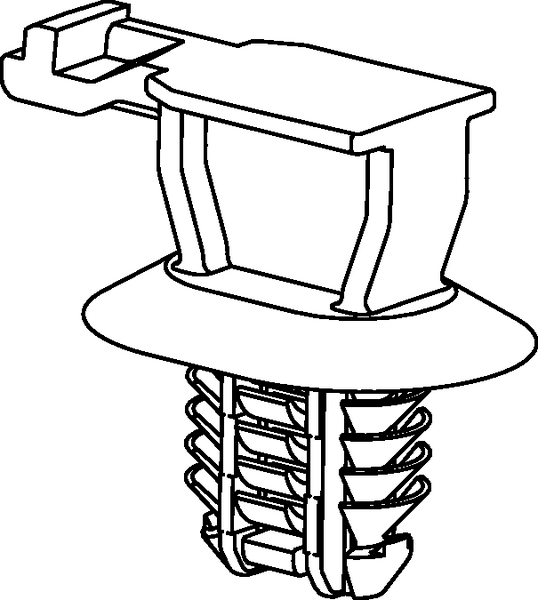

Connector clip for hole (oval), black, 3500pcs.
Art.-Nr. 151-03152
| CCOVAL12.5SO-PA66HIRHSUV-BK
|
Copied
- Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
- Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
- A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
Request quote
| Application | The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement |
| Colour | Black (BK) |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | CCOVAL12.5SO-PA66HIRHSUV-BK |
| Package Content | 3500pcs. |
| Package Content packed in | box |
| Type | CCOVAL12.5SO |
| UV-Stabilised | Yes |
| Weight/Unit | 0.00155kg |
| ELV compliant (Article 4 - 2) | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026635118 |
| Packaging 1 - Height (m) | 0.202m |
| Packaging 1 - Length (m) | 0.51m |
| Packaging 1 - Qty | 3500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0319362m³ |
| Packaging 1 - Weight (kg) | 5.425001kg |
| Packaging 1 - Width (m) | 0.31m |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.5175m |
| Packaging 3 - Qty | 3500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 6.035001kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.194m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 70000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.146m³ |
| Packaging 4 - Weight (kg) | 142.7kg |
| Packaging 4 - Width (m) | 0.8m |
