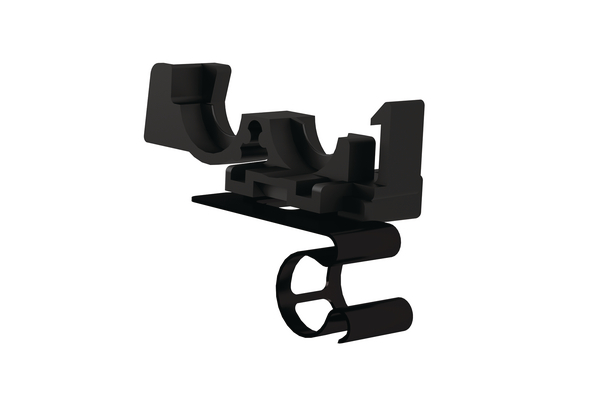

Corrugated tube clip with pipe/tube holder, black, 3000pcs.
Art.-Nr. 133-03488 | CDC6BC9-PP-BK |

Request your individual offer now

Request quote

Application	The Convoluted Tubing Clamp provides a quick method for securing and routing convoluted tubing. The clamp has an internal rib that prevents movement of the tubing and rattling. Living hinge allows placement and positioning of tubing before locking in place. Convoluted tubing clamps are available in various tubing diameters.
Colour	Black (BK)
Fixation Method	Bundling Clip
Key product features	for convoluted tubes or with rib
Material	Polypropylene (PP)
PART DESCRIPTION	CDC6BC9-PP-BK
Package Content	3000pcs.
Package Content packed in	carton
Type	CDC6BC9
UV-Stabilised	No

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	No
Hazardous Goods	No
Operating Temperature	-40 °C to +115 °C
ROHS compliant	Yes
Specifications
	Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions.
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
