31/10/2025

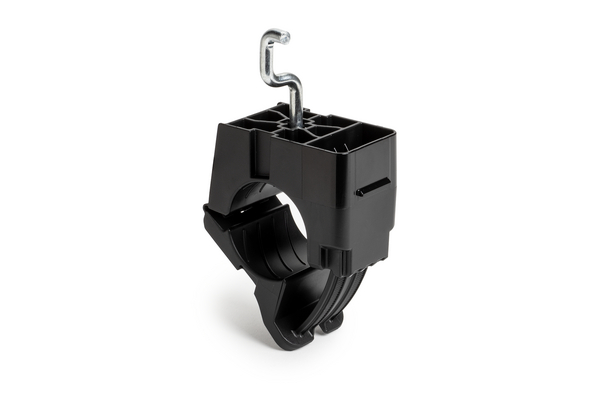

Cable clip, Dmin=19.3mm, Dmax=36.07mm
Art.-Nr. 156-03602 | CMRCCHANGERFS7-PA66HIRHSUV/ZN/ST-BK |

Copied
The Inline Ratchet Clamp family is a perfect fit when facing space constraints.

    • Building on the Ratchet P-Clamp family, the Center Mount Ratchet Clamp (CMRC) family offers fast and versatile installation of lines, hoses and cables
    • Designed for applications where space is limited or when a staggered mounting option is not ideal
    • Depending on the variant, the CMRC can be screwed on with an M6/M8/M10 screw or attached to an M8 threaded bolt
    • The variants for bolt attachment enable time-saving installation with a reliable hold
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws.
    Colour Black (BK)
    Fixation Method Mounting Hanger
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Zinc plated (ZN), Steel (ST)
    Min.Tensile Strength 445N
    PART DESCRIPTION CMRCCHANGERFS7-PA66HIRHSUV/ZN/ST-BK
    Package Content 150pcs.
    Package Content packed in pack
    Product Family screwable, Inline Ratchet Clamps
    Product Group Heavy duty cable clamps
    Type CMRCCHANGERFS7
    UV-Stabilised Yes
    Bundle ⌀ 19.3-36.07mm
    Bundle ⌀ max. 36.07mm
    Bundle ⌀ min. 19.3mm

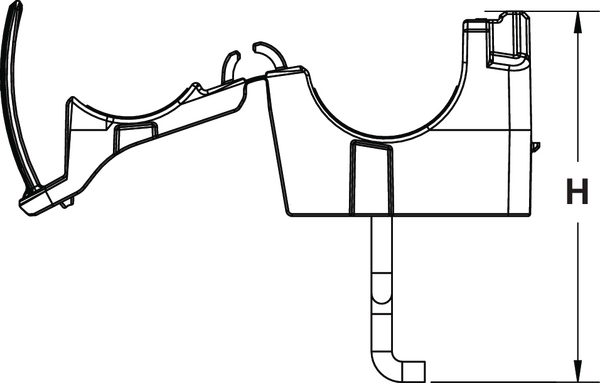

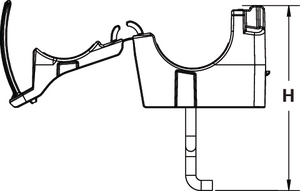

    Height (H) 86.2mm

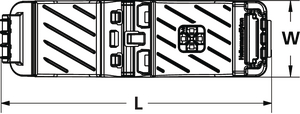

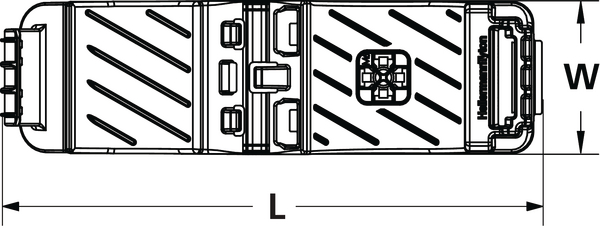

    Length (L) 125.3mm
    Width (W) 35.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026754864
    Packaging 1 - Qty 150
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Qty 150
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Qty 4500
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
