Corrugated tube clip, black, 1500pcs.


Art.-Nr. 133-03486

| CTC6C20.2-PP-BK

 |

Copied
CTC-Series

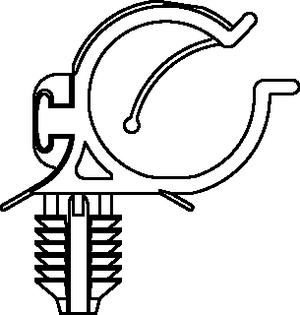

The tubing is clicked into the CTC clamp and is held firmly.
CTC convoluted tubing clip.

    This product is not available anymore.

    • CTC clamps for a variety of nominal diameters
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Tube is guided accurately by clicking
    • Axial slipping is prevented by the inside profile of the clamp
    Add to watchlist
    Request quote
    Downloads
    Application CTC clamps are used for example in the automotive, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
    Colour Black (BK)
    Fixation Method Bundling Clip
    Key product features for convoluted tubes or with rib, reusable, removable
    Material Polypropylene (PP)
    PART DESCRIPTION CTC6C20.2-PP-BK
    Package Content 1500pcs.
    Package Content packed in carton
    Product Family CTC-Series
    Product Group Fixing elements for corrugated tubing, with fir tree
    Type CTC6C20.2
    Variant Clips
    ⌀ (D2) 12.2mm
    ⌀ (D3) 20.2mm
    ⌀ D 0.31"
    ⌀ D2 0.48"
    ⌀ D3 0.8"
    Bundle ⌀ 6.0mm
    Bundle ⌀ max. 6.0mm
    Diameter (D) 8.0mm
    Height (H) 57.3mm
    Height (H2) 35.2mm
    Inner Diameter D (Imperial) 0.24"
    Inside ⌀ (ID) 6.0mm
    Length (L) 49.1mm
    Offset Length 7.5mm
    Width (W) 22.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026595603
    Packaging 3 - Height (m) 0.352424999999999m
    Packaging 3 - Length (m) 0.5715m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Width (m) 0.34925m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
