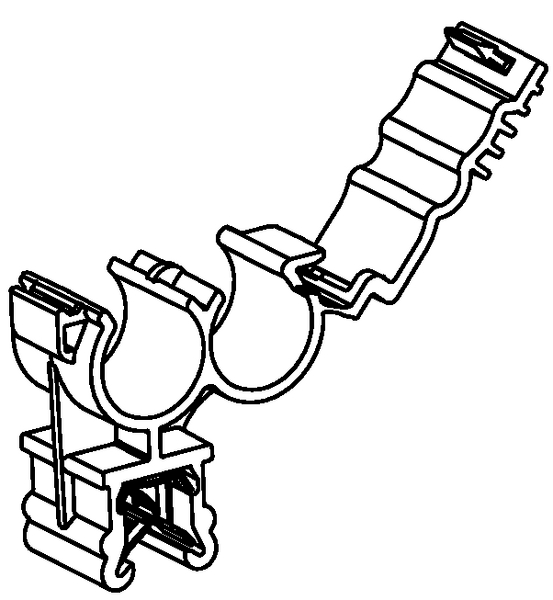

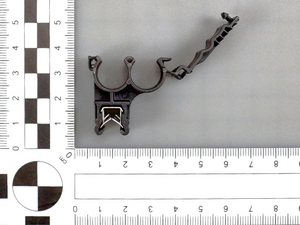

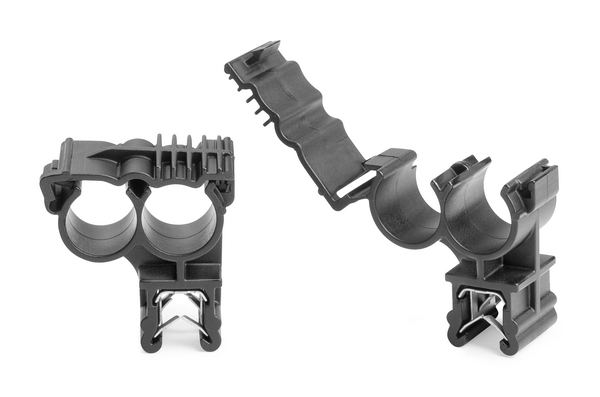

Cable clip for edge/with pipe/tube holder, T=3.0 - 6.0mm, Dmin=11.8mm, Dmax=12.4mm, nom⌀=11.8 - 12.4 mm, nom⌀2=11.8 - 12.4 mm
Art.-Nr. 151-04199 | DLOC12EC3-6TP-PA66HIRHS-BK

Copied

Request your individual offer now

Cable ⌀ max 12.4mm
Cable ⌀ min 11.8mm
Colour Black (BK)
Fixation Method EdgeClip, top
Key product features for multiple routing, for direct fixation, lockable, releasable, reusable
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION DLOC12EC3-6TP-PA66HIRHS-BK

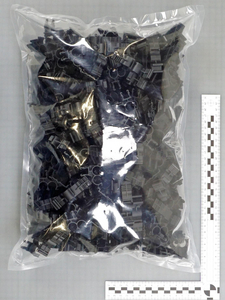

Package Content 300pcs.
Package Content packed in bag
Type DLOC12EC3-6TP
Weight/Unit 0.00442kg
Bundle ⌀ 11.8-12.4mm
Bundle ⌀ max. 12.4mm
Bundle ⌀ min. 11.8mm
Bundle Diameter Nom. (ND) 11.8 - 12.4 mm
Bundle Diameter Nom. 2 (ND2) 11.8 - 12.4 mm
Height (H) 33.0mm
Length (L) 32.2mm
Panel Thickness max. 3.0 - 6.0mm
for Panel Thickness min - max 3 - 6 mm
ELV compliant (Article 4 - 2) YES
Halogen-free Yes
Hazardous Goods No
ROHS compliant Yes
Specifications
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026741178
Packaging 1 - Height (m) 0.105m
Packaging 1 - Length (m) 0.43m
Packaging 1 - Qty 300
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01422225
Packaging 1 - Weight (kg) 1.347815kg
Packaging 1 - Width (m) 0.315m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 1200
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 6.35326kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.204m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.156
Packaging 4 - Weight (kg) 148.08kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
