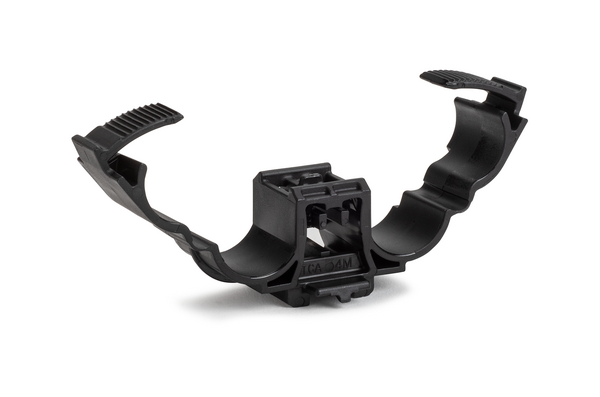

Ratchet O-Clamp
Art.-Nr. 151-04429 | DROC15-19SLOT17-PA66HIRHSUV-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Connector Clip
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 445N
    PART DESCRIPTION DROC15-19SLOT17-PA66HIRHSUV-BK
    Package Content 500pcs.
    Package Content packed in pack
    Product Group Ratchet O-Clamp
    Type DROC15-19SLOT17
    Type of connection USCAR17
    UV-Stabilised Yes
    Bundle ⌀ 15.0-19.0mm
    Bundle ⌀ max. 19.0mm
    Bundle ⌀ min. 15.0mm
    Height (H) 43.3mm
    Length (L) 100.7mm
    Width (W) 25.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026759647
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
