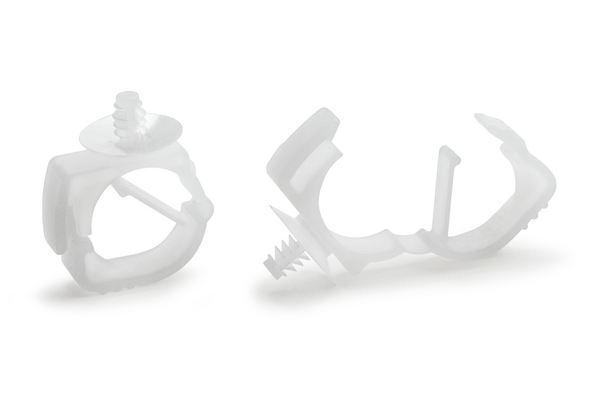

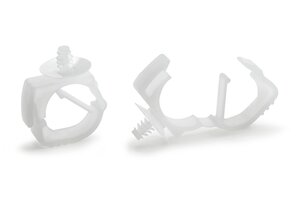

Cable clip, T=3.0mm, ⌀3.3 - 4.0 mm, Dmax=13mm
Art.-Nr. 151-03160 | HC513FT4J-PA66-NA

Copied
  • Dome-shaped support makes it difficult for dust to enter after fixed to the panel.
  • The clip part can be opened and closed, that harness can be removed during maintenance.
  • The mount design uses HT’s unique fir tree shape, which can be used for wide range of plate thicknesses.

Request your individual offer now

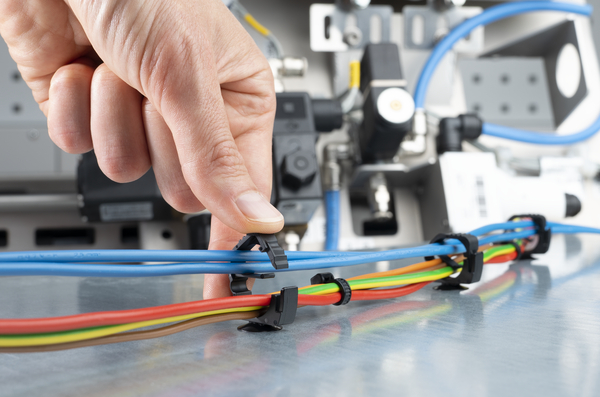

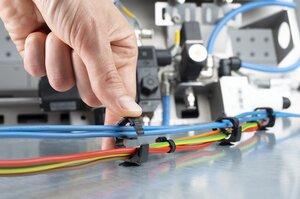

Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
Colour Natural (NA)
Material Polyamide 6.6 (PA66)
Mounting Screw Type M4 Screw
PART DESCRIPTION HC513FT4J-PA66-NA
Package Content 100pcs.
Package Content packed in bag
Product Family Fixing Elements for Tubes and Harnesses with Fir Tree
Product Group Holder Clip
Type HC513FT4J
Weight/Unit 0.00138kg
Bundle ⌀ 13mm
Bundle ⌀ max. 13mm
Length (L) 38.2mm
Panel Thickness max. 3.0mm
Width (W) 7.0mm
for Hole ⌀ (FH) 3.3 - 4.0 mm
for Panel Thickness min - max 1 - 3 mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
Country of Origin JP
Customs Number 39269097
GTIN-13 / EAN 4944387121513
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 0.138001kg
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.455m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0494
Packaging 3 - Weight (kg) 7.34005kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 75000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 131.1kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 31162305
