Cable clip, T=3.0mm, Ø3.3 - 4.0 mm, Dmax=13mm, blue, 100pcs.
Art.-Nr. 151-03162 | HC513FT4J-E/TFE-BU |  Details

    • Dome-shaped support makes it difficult for dust to enter after fixed to the panel.
    • The clip part can be opened and closed, that harness can be removed during maintenance.
    • The mount design uses HT’s unique fir tree shape, which can be used for wide range of plate thicknesses.
    Add to watchlist

    Request your individual offer now

     Request quote

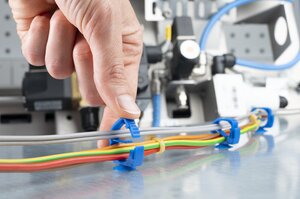

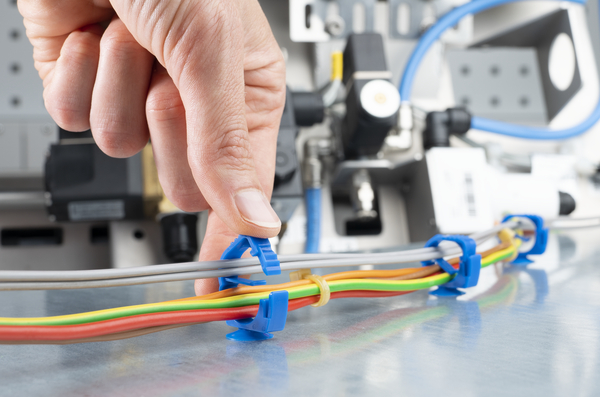

    Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
    Colour Blue (BU)
    Material Ethylene Tetrafluoroethylene (E/TFE)
    Mounting Screw Type M4 Screw
    Pack Cont. 100pcs.
    Package Content packed in bag
    PART DESCRIPTION HC513FT4J-E/TFE-BU
    Product Family Fixing Elements for Tubes and Harnesses with Fir Tree
    Product Group Holder Clip
    Bundle Diameter max (metric) 13mm
    Bundle ∅ 13mm
    for Hole ∅ (FH) 3.3 - 4.0 mm
    for Panel Thickness min - max 1 - 3 mm
    Height (H) 38.2mm
    Length (L) 38.2mm
    Panel Thickness max. 3.0mm
    Width (W) 6.8mm
    Flammability UL 94 V0
    Operating Temperature -80 °C to +170 °C
    Country of Origin JP
    GTIN-13 / EAN 4944387121537
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
