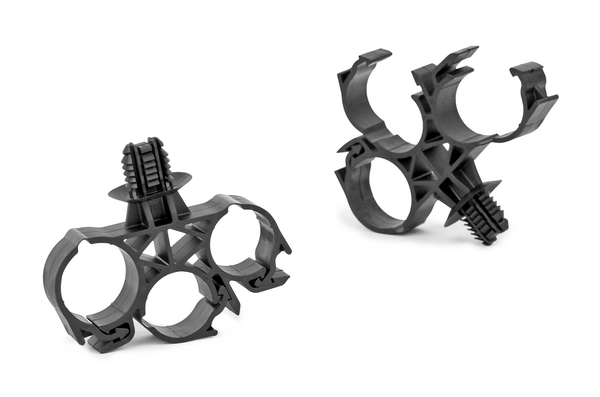

Cable clip for hole (oval), T=0.6-6.5mm, ⌀6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=18.0mm, Dmax=22.0mm

Art.-Nr. 151-02123

| PC3OVAL-PA66HIRHS-BK

|

For fixing and bundling convoluted tubes and pipes
Suitable for nearly every application

Add to watchlist

Request quote

Downloads

More products in this product group:

Fixing elements for tubes and harnesses

This product is part of:

SampleBox_Multiple_Routing

Base Data

Application	These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour	Black (BK)
Fixation Method	Fir Tree
Key product features	for multiple routing, for faster processing, lockable
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	PC3OVAL-PA66HIRHS-BK
Package Content	1000pcs.
Package Content packed in	carton
Product Family	for multiparallel routing
Product Group	Fixing elements for tubes and harnesses
Type	PC3OVAL
Weight/Unit	0.0097kg

Product Dimensions

Attach to ⌀	18.0, 22.0
Bundle ⌀	18.0-22.0mm
Bundle ⌀ max.	22.0mm
Bundle ⌀ min.	18.0mm
Height (H)	69.6mm
Length (L)	91.5mm
Panel Thickness	0.6-6.5mm
Width (W)	17.6mm
for Hole ⌀ (FH)	6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max	0.6 - 6.5 mm

Specifications

ELV compliant (Article 4 - 2)	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	CN
Customs Number	39269097
GTIN-13 / EAN	4031026601465
Packaging 3 - Height (m)	0.35m
Packaging 3 - Length (m)	0.57m
Packaging 3 - Qty	1000
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0778m³
Packaging 3 - Weight (kg)	10.6kg
Packaging 3 - Width (m)	0.39m
Packaging 4 - Height (m)	1.194m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	12000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.146m³
Packaging 4 - Weight (kg)	149.2kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	39121702
